R1812-110-24-R
lmages are for reference only.Payment Methods
Delivery Services

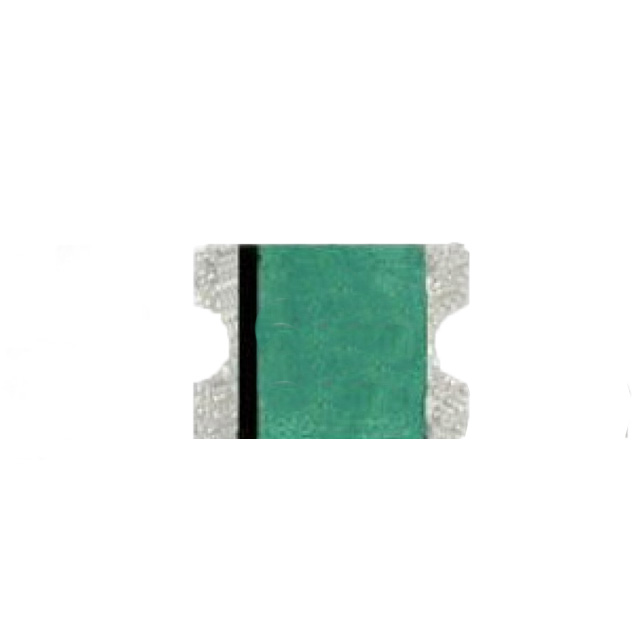

Polymeric PTC Resettable Fuse 24V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
R1812-110-24-R
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | OptiFuse |
| Series | R1812 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 24V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.051" (1.30mm) |
| Lead Spacing | - |
| Approval Agency | cULus, TUV |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 60 mOhms |
| Resistance - Post Trip (R1) (Max) | 200 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | R1812 |
| Product Attribute |  |
 |
 |
 |
| Part Number | R1812-075-24-R | R1812-075-33-R | R1812-150-24-R | B59870C0080A070 |
| Manufacturer | OptiFuse | OptiFuse | OptiFuse | EPCOS - TDK Electronics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | PTC Fuse - SMD 1812, 750mA 24VDC | PTC Fuse - SMD 1812, 750mA 33VDC | PTC Fuse - SMD 1812, 1.5A 24VDC | PTC RESET FUSE 265V 60MA RADIAL |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
