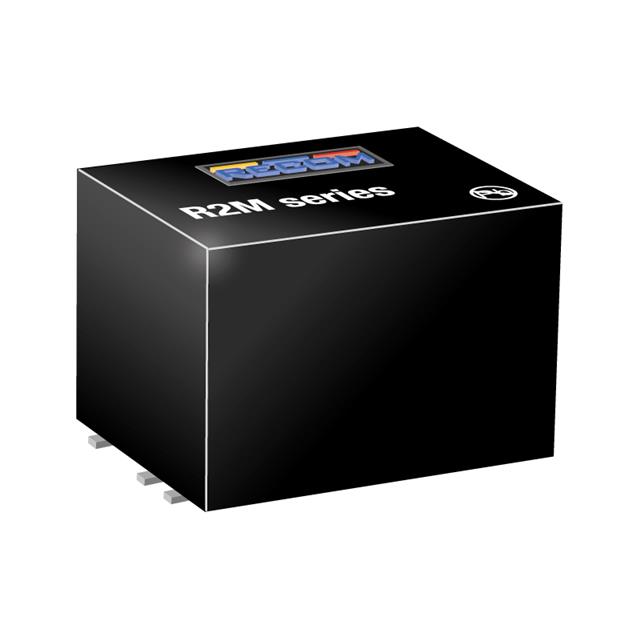

R2M-4824S/SMD
lmages are for reference only.R2M-4824S/SMD
2W DC/DC-CONVERTER 'ECONOLINE' S
Datasheet7-SMD Module, 6 Leads
20,156 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 83mA 18V - 75V Input
R2M-4824S/SMD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | R2M (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 1.992 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD Module, 6 Leads |
| Size / Dimension | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.6 kV |
| Product Attribute |  |
 |
 |
 |

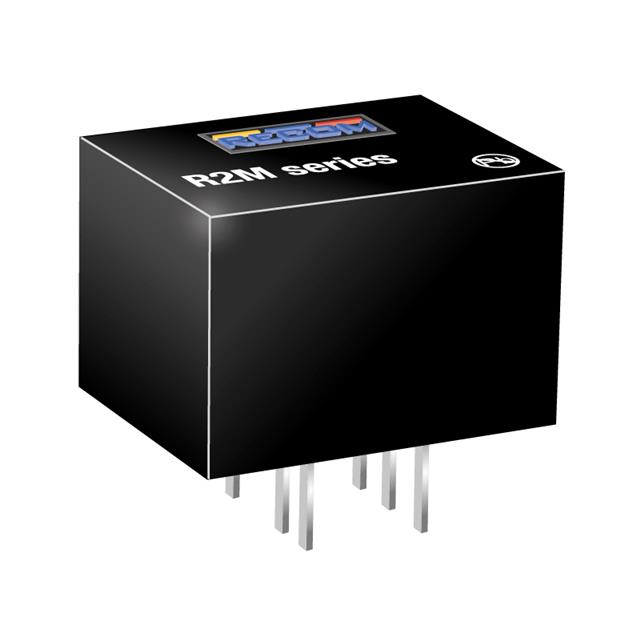

| Part Number | R2M-4824S | R2M-1205D | R2M-1205D/SMD | R2M-1205S |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2W DC/DC-CONVERTER 'ECONOLINE' D | 2W DC/DC-CONVERTER 'ECONOLINE' D | 2W DC/DC-CONVERTER 'ECONOLINE' S | 2W DC/DC-CONVERTER 'ECONOLINE' D |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tube | Tube | Tube |
