R5F523E5SDNF#40
lmages are for reference only.R5F523E5SDNF#40
IC MCU 32BIT 128MB FLASH 40WFQFN
Datasheet40-WFQFN Exposed Pad
85,806 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RXv2 RX23E-A Microcontroller IC 32-Bit 32MHz 128KB (128K x 8) FLASH 40-HWQFN (6x6)
R5F523E5SDNF#40
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | RX23E-A |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | RXv2 |
| Core Size | 32-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, I2C, SCI, SPI |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 20 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 4x12b, 12x24b Sigma-Delta |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-HWQFN (6x6) |
| Package / Case | 40-WFQFN Exposed Pad |
| Base Product Number | R5F523 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

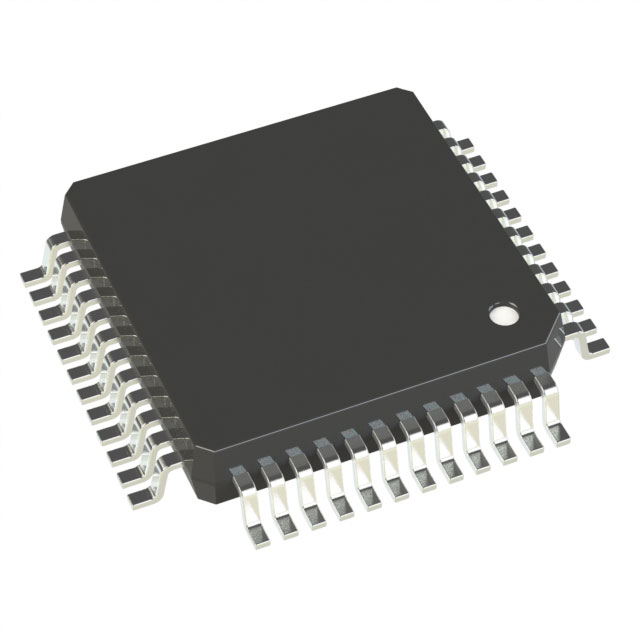

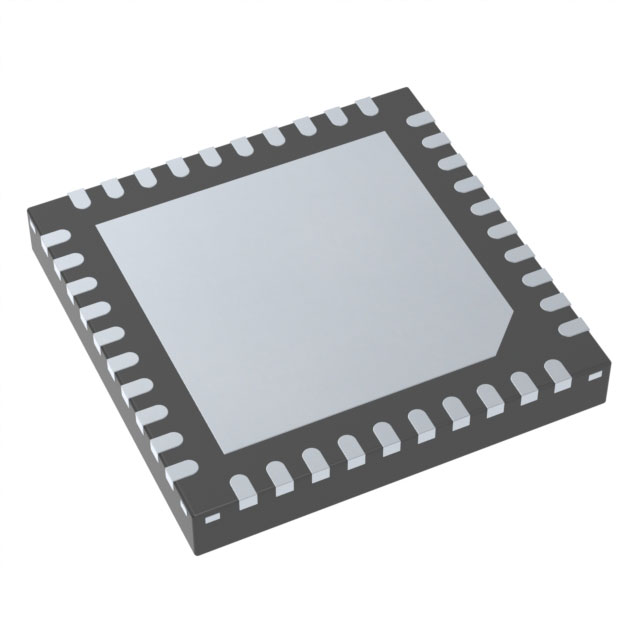

| Part Number | R5F523E5SDNF#00 | R5F523E5SDNF#20 | R5F523E5SDFL#10 | R5F523E5SDFL#30 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 128MB FLASH 40WFQFN | IC MCU 32BIT 128MB FLASH 40WFQFN | IC MCU 32BIT 128MB FLASH 48LQFP | IC MCU 32BIT 128MB FLASH 48LQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tape & Reel (TR) | Tray | Tray | Tray |
