RAHT1101M1TDE7002E

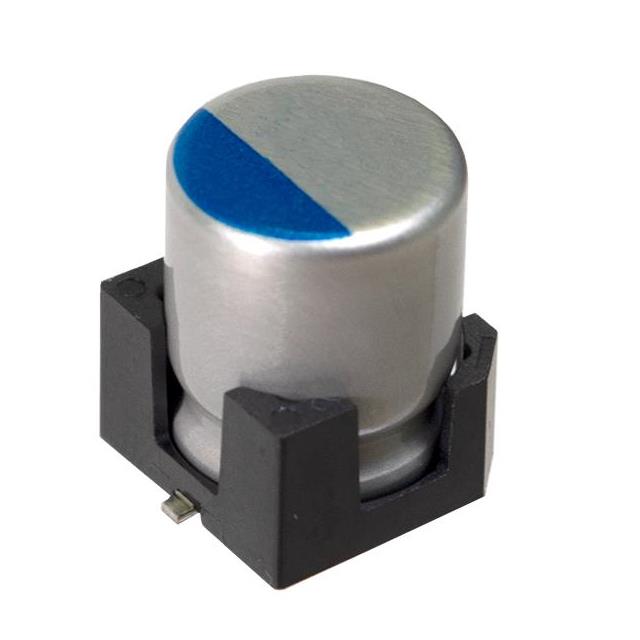

lmages are for reference only.RAHT1101M1TDE7002E
CAP ALUMHYB 100UF 20% 25V SMD
DatasheetRadial, Can - SMD
89,201 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 10000 Hrs @ 105°C
RAHT1101M1TDE7002E
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Taiyo Yuden |
| Series | HT1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | Anti-Vibration |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RAHT1101M1TDE7002 | RAHT1121M4EGL5005E | RAHT1151M1GEH0002E | RAHT1221M1TEH0002E |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUMHYB 100UF 20% 25V SMD | CAP ALUMHYB 120UF 20% 63V SMD | CAP ALUMHYB 150UF 20% 35V SMD | CAP ALUMHYB 220UF 20% 25V SMD |
| Series | HT1 | HT1 | HT1 | HT1 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
