RAVF104DFT100R

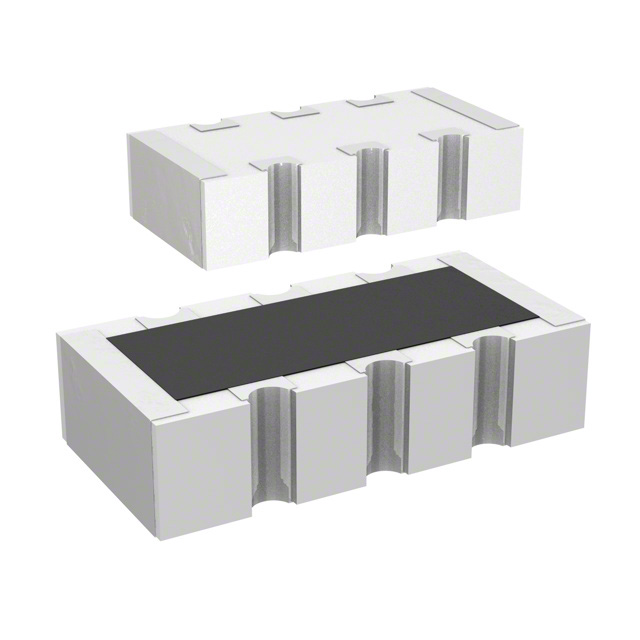

lmages are for reference only.RAVF104DFT100R
RES ARRAY 4 RES 100 OHM 0804
Datasheet0804, Convex, Long Side Terminals
14,933 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 Ohm ±1% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
RAVF104DFT100R
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Stackpole Electronics Inc |
| Series | RAVF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Isolated |
| Resistance (Ohms) | 100 |
| Tolerance | ±1% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0804, Convex, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RAVF104DFT100K | RAVF104DFT10K0 | RAVF104DFT10R0 | RAVF104DFT110K |
| Manufacturer | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 100K OHM 0804 | RES ARRAY 4 RES 10K OHM 0804 | RES ARRAY 4 RES 10 OHM 0804 | RES ARRAY 4 RES 110K OHM 0804 |
| Series | RAVF | RAVF | RAVF | RAVF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
