Product CatalogPart Number
RB500SM-30T2R
Manufacturer
Rohm SemiconductorDescription
DIODE SCHOTTKY 30V 100MA EMD2
Datasheet
DatasheetPackage
SC-79, SOD-523
In Stock
93,050 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RB500SM-30T2R
RB500SM-30T2R
lmages are for reference only.Payment Methods
Delivery Services
Diode 30 V 100mA Surface Mount EMD2
Quick Inquiry
RB500SM-30T2R
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 10 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 nA @ 10 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | EMD2 |
| Operating Temperature - Junction | 150°C |
| Base Product Number | RB500 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |
| Part Number | RB500SM-30FHT2R | RB500V-40 | RB500V-40 RRG | RB500V-40-TP |
| Manufacturer | Rohm Semiconductor | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 30V 100MA EMD2 | SOD-323F, 45V, 0.1A, SCHOTTKY DI | DIODE SCHOTTKY 40V 100MA SOD323F | DIODE SCHOTTKY 40V 100MA SOD323 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
RB500SM-30FHT2R
Rohm Semiconductor
RB500V-40
Taiwan Semiconductor Corporation

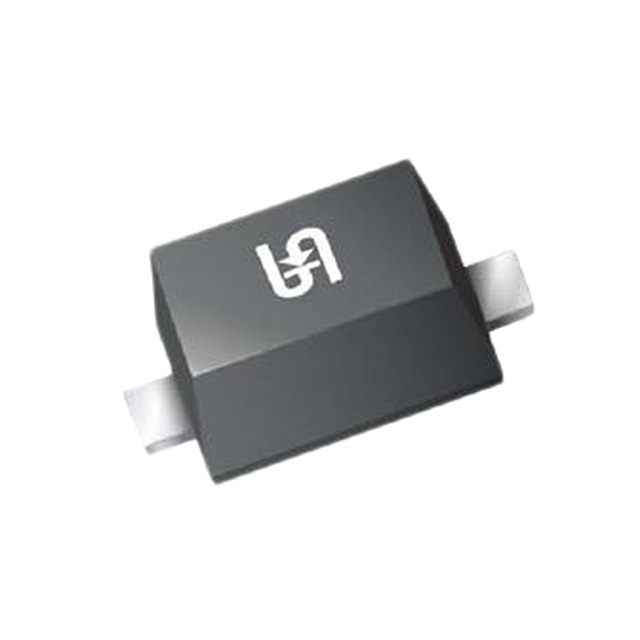

RB500V-40 RRG
Taiwan Semiconductor Corporation
RB500V-40-TP
Micro Commercial Co
RB500V-40-TP-HF
Micro Commercial Co

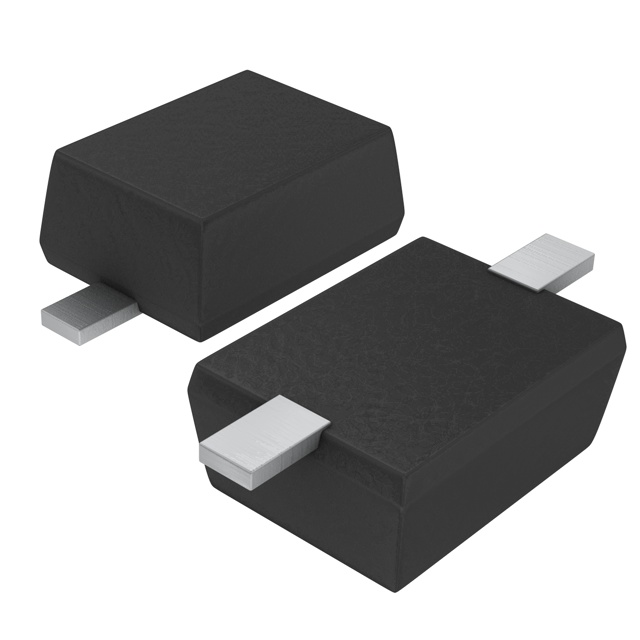

RB500V-40TE-17
