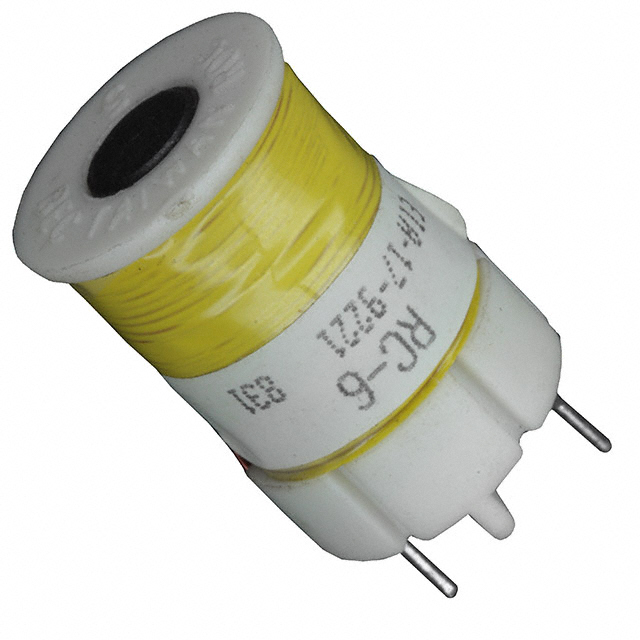

RC-6
lmages are for reference only.RC-6
FIXED IND 560UH 800MA 600MOHM TH
DatasheetRadial, Vertical Cylinder
78,743 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 µH Unshielded Drum Core, Wirewound Inductor 800 mA 600mOhm Radial, Vertical Cylinder
RC-6
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | RC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.600" Dia (15.24mm) |
| Height - Seated (Max) | 0.930" (23.62mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | RC-1 | RC-10 | RC-10-B | RC-11 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.6MH 250MA 6.1 OHM TH | FIXED IND 100UH 2A 98 MOHM TH | FIXED IND 100UH 2A 98 MOHM TH | FIXED IND 75UH 2.5A 70 MOHM TH |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
