RCLAMP3522T.TFT
lmages are for reference only.RCLAMP3522T.TFT
TVS DIODE 3.5VWM 13VC SGP1006N3T
Datasheet0402 (1006 Metric)
98,132 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SGP1006N3T
RCLAMP3522T.TFT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 3.5V (Max) |
| Voltage - Breakdown (Min) | 4.5V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | 50W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.33pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | SGP1006N3T |
| Base Product Number | RCLAMP3522 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

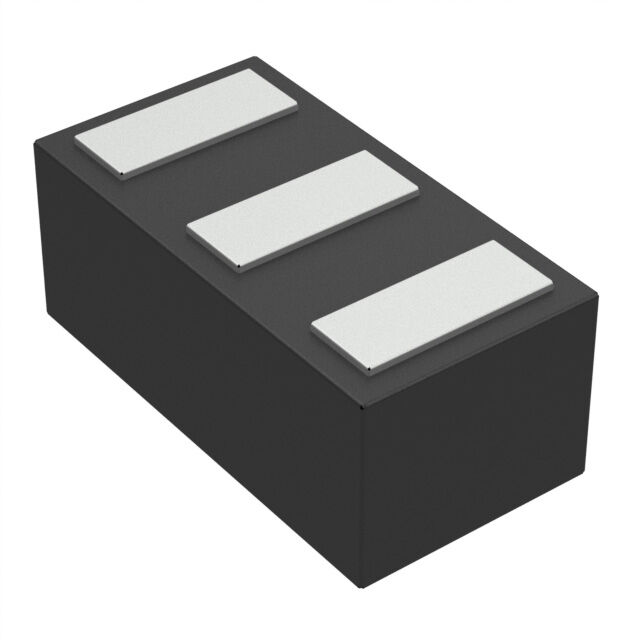

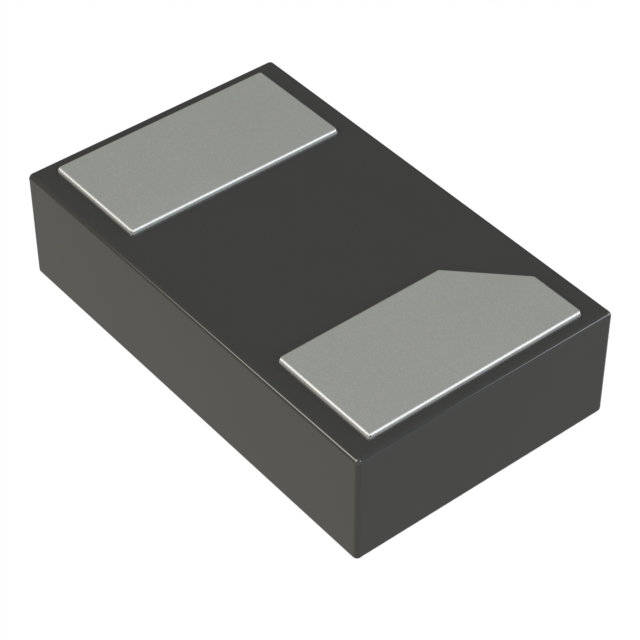

| Part Number | RCLAMP3521P.TNT | RCLAMP3521ZATFT | RCLAMP3521ZATNT | RCLAMP01001ZCFT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TVS DIODE 3.5VWM 13VC SLP1006P2 | TVS DIODE 3.5VWM 5V SLP0603P2X3F | TVS DIODE 3.5VWM 5V SLP0603P2X3F | RCLAMP, 1-LINE 1.0V 0.12PF SLP06 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
