Product CatalogPart Number
RCLAMP7534P.TNT
Manufacturer
Semtech CorporationDescription
TVS DIODE 5VWM 25VC SGP2010N5
Datasheet
DatasheetPackage
5-UFDFN
In Stock
23,237 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RCLAMP7534P.TNT
RCLAMP7534P.TNT
lmages are for reference only.Payment Methods
Delivery Services
25V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SGP2010N5
Quick Inquiry
RCLAMP7534P.TNT
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.5V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.19pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 5-UFDFN |
| Supplier Device Package | SGP2010N5 |
| Base Product Number | RCLAMP7534 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

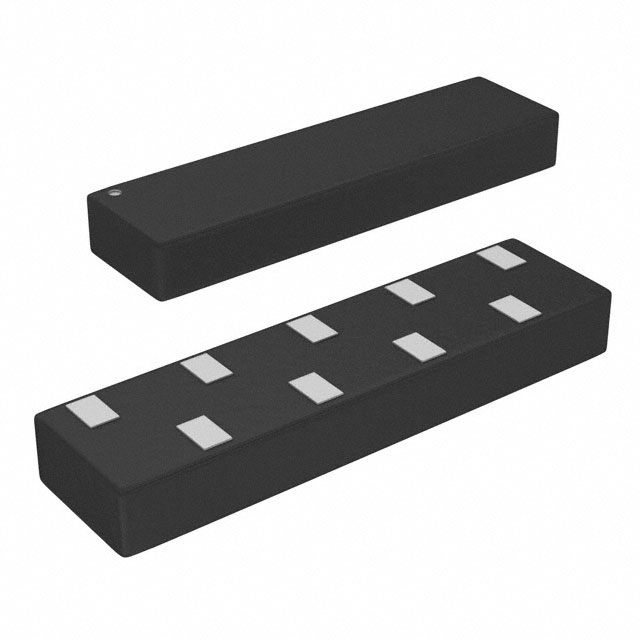

| Part Number | RCLAMP7534F.TCT | RCLAMP7535M.TLT | RCLAMP7538M.TLT | RCLAMP7538P.TNT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TVS DIODE 5VWM 30VC SC70-6 | TVS DIODE 2.5VWM 10VC 10MSOP | TVS 8LINE LOW CAP 10MSOP | TVS DIODE 5VWM 15VC SLP3810N9 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
