RCR110DNP-102L
lmages are for reference only.RCR110DNP-102L
FIXED IND 1MH 350MA 1.5 OHM TH
DatasheetRadial, Vertical Cylinder, 4 Leads
26,004 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mH Shielded Inductor 350 mA 1.5Ohm Max Radial, Vertical Cylinder, 4 Leads
RCR110DNP-102L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | RCR-110D |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.5Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | RCR110DNP-102L | RCR110DNP-100M | RCR110DNP-101L | RCR110DNP-101L |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

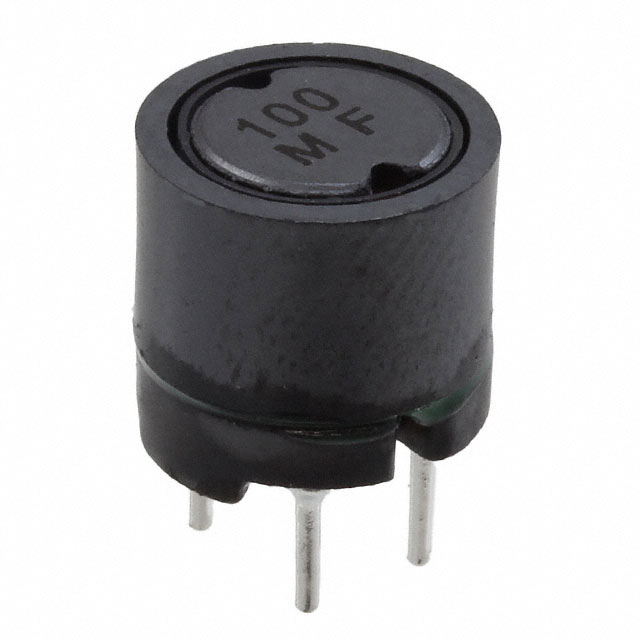

| Description | FIXED IND 1MH 350MA 1.5 OHM TH | FIXED IND 10UH 3.51A 23 MOHM TH | FIXED IND 100UH 1.08A 190MOHM TH | FIXED IND 100UH 1.08A 190MOHM TH |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
