RD3G03BBGTL1

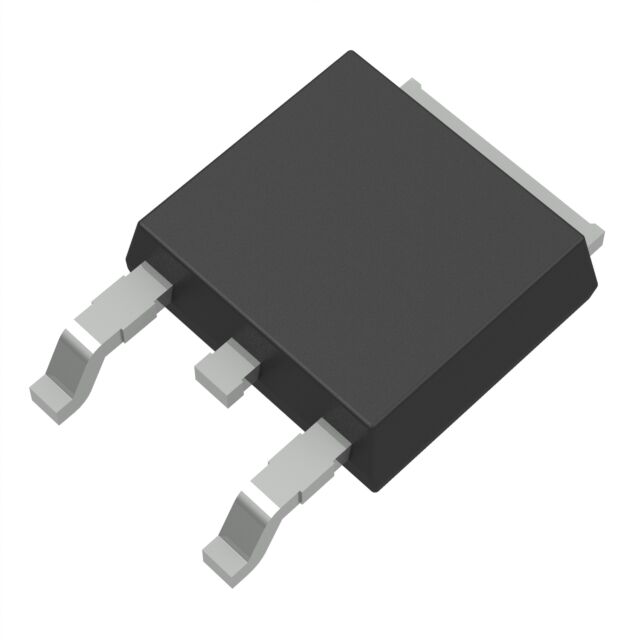

lmages are for reference only.RD3G03BBGTL1
NCH 40V 65A, TO-252, POWER MOSFE
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
27,031 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 35A (Tc) 50W (Tc) Surface Mount TO-252
RD3G03BBGTL1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1170 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 18.2 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RD3G03BATTL1 | RD3G01BATTL1 | RD3G07BATTL1 | RD3G07BBGTL1 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PCH -40V -35A POWER MOSFET - RD3 | PCH -40V -15A POWER MOSFET - RD3 | PCH -40V -70A POWER MOSFET - RD3 | NCH 40V 70A, TO-252, POWER MOSF |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
