Product CatalogPart Number
RD7137-10-6M6
Manufacturer
Schaffner EMC Inc.Description
CMC 6.6MH 10A 3LN TH
Datasheet
DatasheetPackage
-
In Stock
36,826 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RD7137-10-6M6
RD7137-10-6M6
lmages are for reference only.Payment Methods
Delivery Services
6.6 mH @ 400 Hz 3 Line Common Mode Choke Through Hole 10A (Typ) DCR 21.9mOhm (Typ)
Quick Inquiry
RD7137-10-6M6
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Schaffner EMC Inc. |
| Series | RD |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 3 |
| Inductance @ Frequency | 6.6 mH @ 400 Hz |
| Current Rating (Max) | 10A (Typ) |
| DC Resistance (DCR) (Max) | 21.9mOhm (Typ) |
| Voltage Rating - DC | 850V |
| Voltage Rating - AC | 600V |
| Operating Temperature | -25°C ~ 110°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.756" L x 2.756" W (70.00mm x 70.00mm) |
| Height (Max) | 1.594" (40.50mm) |
| Package / Case | - |
| Base Product Number | RD7137 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

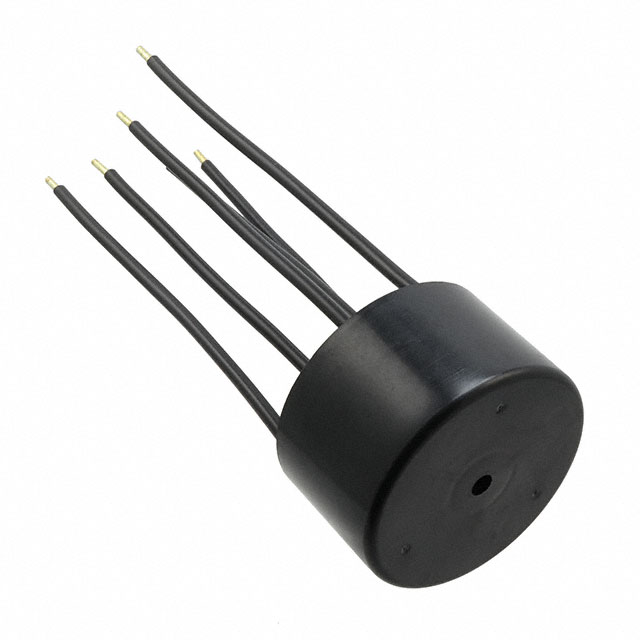

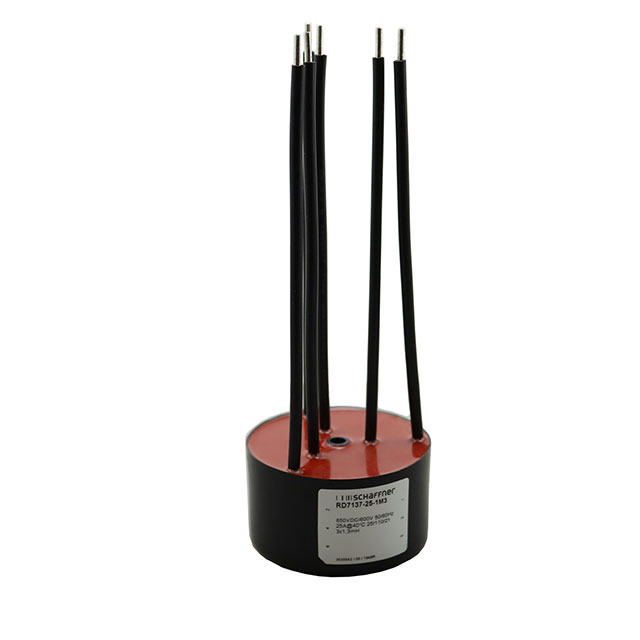

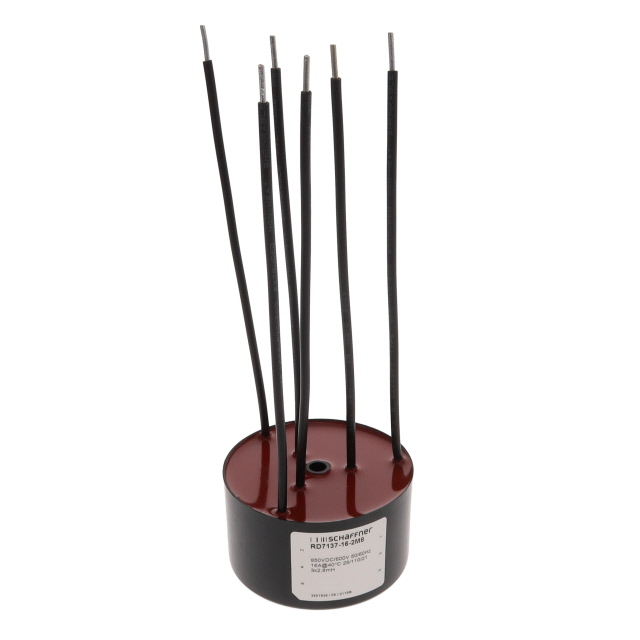

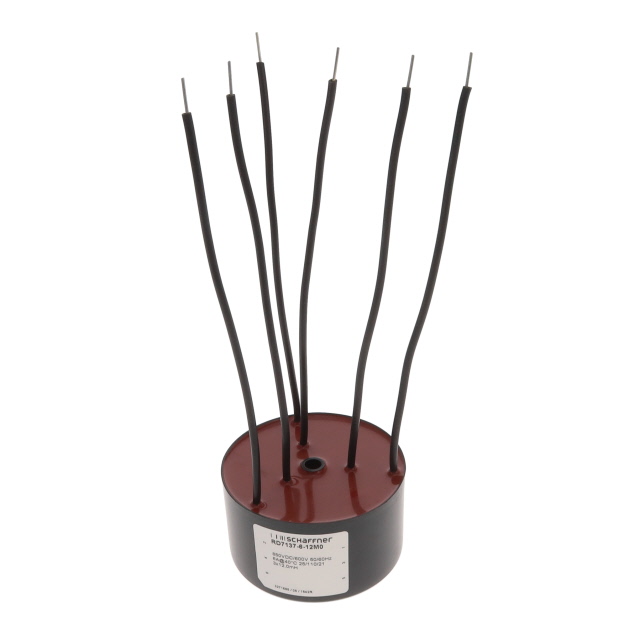

| Part Number | RD7137-16-2M8 | RD7137-25-1M3 | RD7137-36-0M5 | RD7137-6-12M0 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 2.8MH 16A 3LN TH | CMC 1.3MH 25A 3LN TH | CMC 500UH 36A 3LN TH | CMC 12MH 6A 3LN TH |
| Series | RD | RD | RD | RD |
| Packaging | Tray | Tray | Tray | Tray |
