Product CatalogPart Number
RDD0824D05
Manufacturer
XP PowerDescription
DC DC CONVERTER +/-5V 8W
Datasheet
DatasheetPackage
24-DIP Module, 9 Leads
In Stock
91,154 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RDD0824D05
RDD0824D05

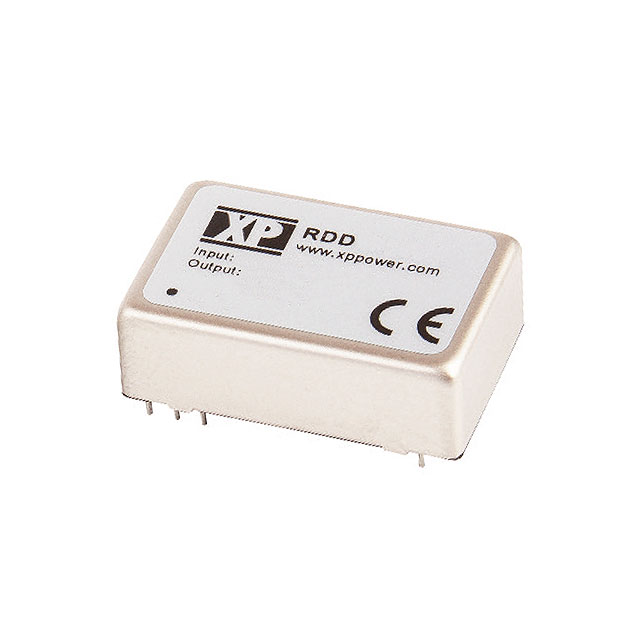

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 13V - 70V Input
Quick Inquiry
RDD0824D05
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | XP Power |
| Series | RDD (8W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13V |
| Voltage - Input (Max) | 70V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 800mA, 800mA |
| Power (Watts) | 8 W |
| Applications | Railway |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | RDD0824 |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RDD0824D12 | RDD0824D15 | RDD0824S05 | RDD0824S12 |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 8W | DC DC CONVERTER +/-15V 8W | DC DC CONVERTER 5V 8W | DC DC CONVERTER 12V 8W |
| Series | XP Power | XP Power | XP Power | XP Power |
| Packaging | Tube | Tube | Tube | Tube |
