RDL03-110S12W
lmages are for reference only.RDL03-110S12W
DC DC CONVERTER 12V 3W
Datasheet12-SIP Module, 10 Leads
90,917 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 250mA 43V - 160V Input
RDL03-110S12W
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | RDL03W (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, Standby Output |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 10 Leads |
| Size / Dimension | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | RDL03 |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

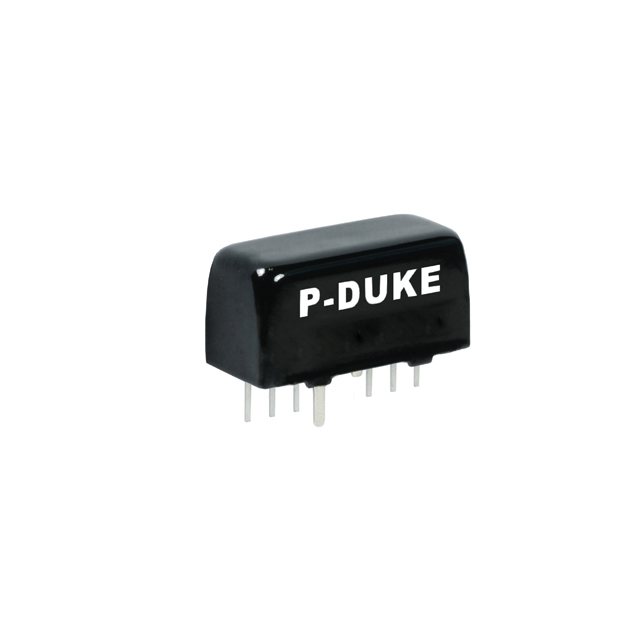

| Part Number | RDL03-110S05W | RDL03-110S15W | RDL03-110S24W | RDL03-24S05W |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 3W | DC DC CONVERTER 15V 3W | DC DC CONVERTER 24V 3W | DC DC CONVERTER 5V 3W |
| Series | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology | P-DUKE Technology |
| Packaging | Tube | Tube | Tube | Tube |
