Product CatalogPart Number
RDS-10S-74R-254-D
Manufacturer
Same SkyDescription
SWITCH ROTARY DIP BCD 0.1A 42V
Datasheet
DatasheetPackage
-
In Stock
53,258 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RDS-10S-74R-254-D
RDS-10S-74R-254-D
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 42VDC
Quick Inquiry
RDS-10S-74R-254-D
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | Same Sky |
| Series | RDS-74R-254 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | BCD |
| Number of Positions | 10 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 42VDC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.291" (7.40mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -60°C ~ 125°C |
| Body Material | Liquid Crystal Polymer (LCP) |
| Length | 0.291" (7.40mm) |
| Mechanical Life | - |
| Electrical Life | 25,000 Steps |
| Base Product Number | RDS-10S |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RDS-10S-74R-508-D | RDS-10S-74R45A-254-D | RDS-10S-74R45A-508-D | RDS-10S-1045-D |
| Manufacturer | Same Sky | Same Sky | Same Sky | Same Sky |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH ROTARY DIP BCD 0.1A 42V | SWITCH ROTARY DIP BCD 0.1A 42V | SWITCH ROTARY DIP BCD 0.1A 42V | SWITCH ROTARY DIP BCD 0.025A 24V |
| Series | RDS-74R-508 | RDS-74R45A-254 | RDS-74R45A-508 | RDS-1045 |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
RDS-10S-1045-D
Same Sky
RDS-10S-1045-SMT
Same Sky
RDS-10S-1045-SMT-TR
Same Sky
RDS-10S-1055-D
Same Sky
RDS-10S-1055-SMT
Same Sky
RDS-10S-1055-SMT-TR
Same Sky
RDS-10S-7229-A-ASMT-TR
Same Sky
RDS-10S-7229-A-CR
Same Sky

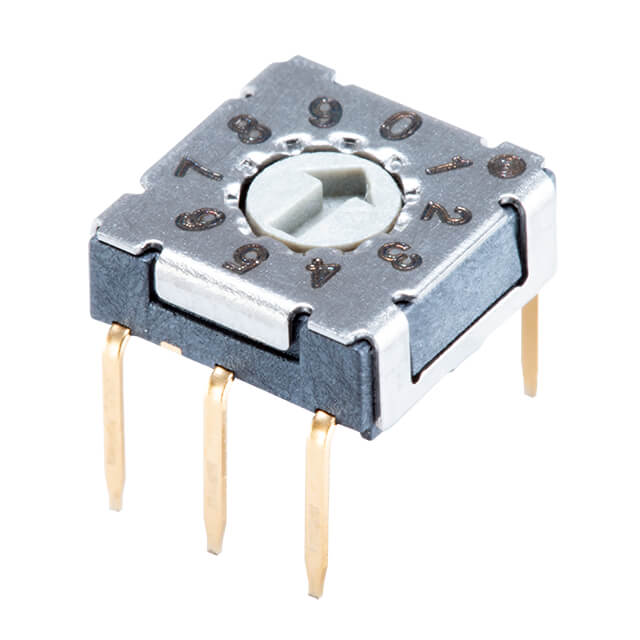

RDS-10S-7229-A-D
Same Sky

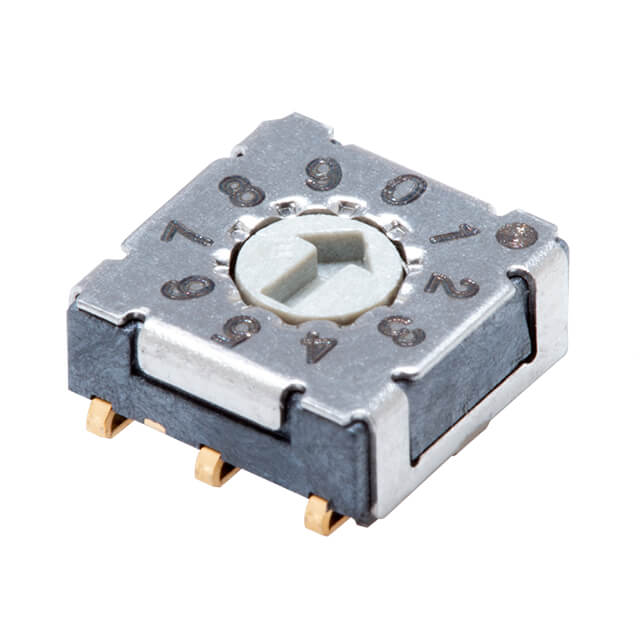

RDS-10S-7229-A-JSMT
