RE032012
lmages are for reference only.RE032012
RELAY GEN PURPOSE SPST 6A 12V
Datasheet-
59,151 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
RE032012
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RE, SCHRACK |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2400VA |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 720 Ohms |
| Base Product Number | RE0320 |
| Product Attribute |  |
 |
 |
 |
| Part Number | RE032005 | RE032006 | RE032024 | RE034012 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |

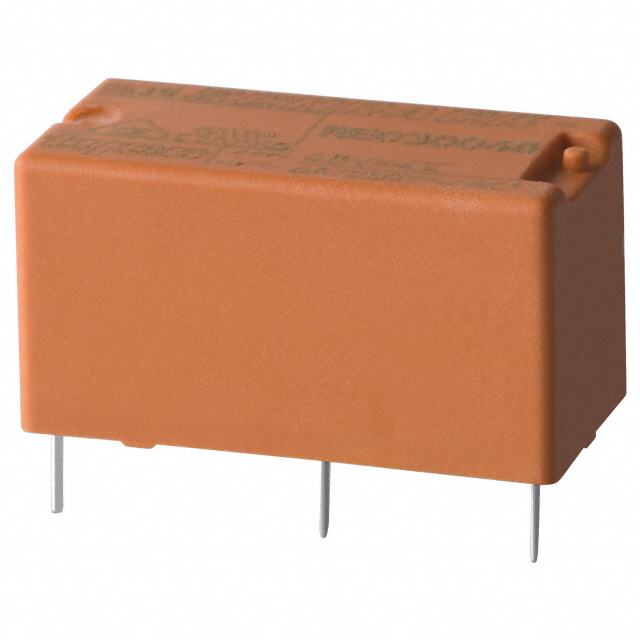

| Description | RELAY GEN PURPOSE SPST 6A 5V | RELAY GEN PURPOSE SPST 6A 6V | RELAY GEN PURPOSE SPST 6A 24V | RELAY GEN PURPOSE SPST 6A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Tube | Tube |
