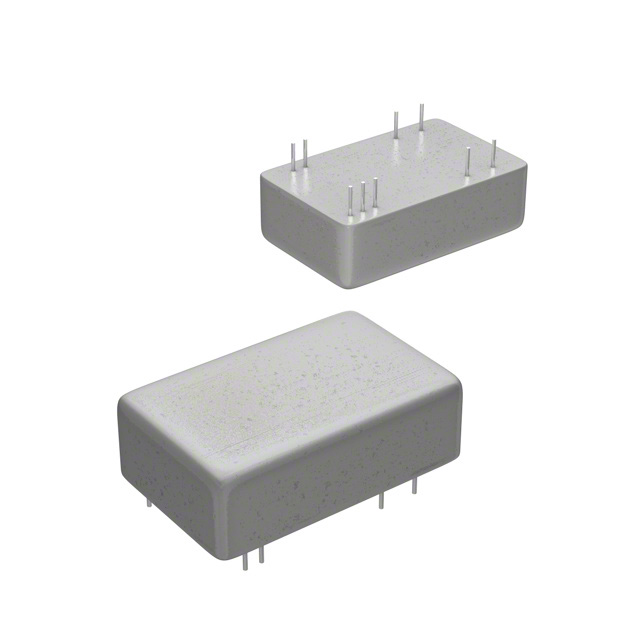

REC10-4815SRWZ/H3/A/M/X2
lmages are for reference only.REC10-4815SRWZ/H3/A/M/X2
DC DC CONVERTER 15V 10W
Datasheet24-DIP Module, 9 Leads
12,728 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 667mA 18V - 75V Input
REC10-4815SRWZ/H3/A/M/X2
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |

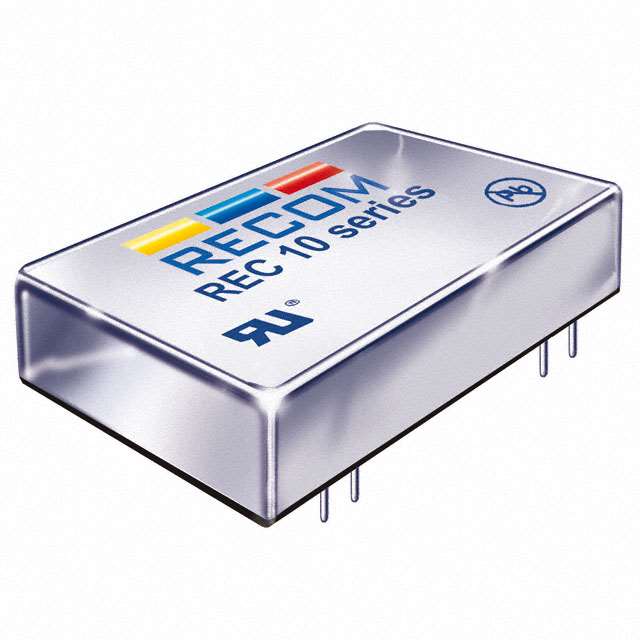

| Series | ECONOLINE REC10 (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 667mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC10-4815 |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

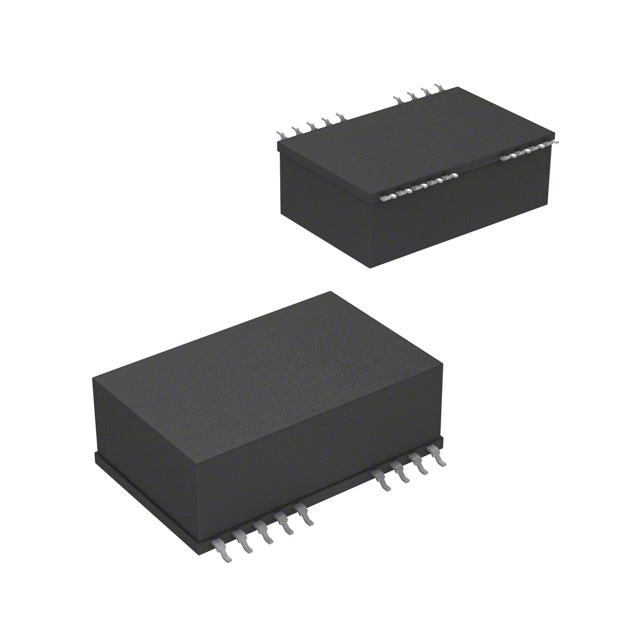

| Part Number | REC10-4815SRWZ/H3/A/M | REC10-4815SRWZ/H2/A/M | REC10-4815SRWZ/H2/A/M/SMD | REC10-4815SRWZ/H2/A/M/SMD-R |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 10W | DC DC CONVERTER 15V 10W | DC DC CONVERTER 15V 10W | DC DC CONVERTER 15V 10W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
