REC3-0505SRW/H6/A/SMD/CTRL-R
lmages are for reference only.REC3-0505SRW/H6/A/SMD/CTRL-R
DC DC CONVERTER 5V 3W
Datasheet24-SMD Module, 18 Leads
69,796 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 600mA 4.5V - 9V Input
REC3-0505SRW/H6/A/SMD/CTRL-R
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE REC3-SRW (3W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 79% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC3-0505 |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
 |
 |

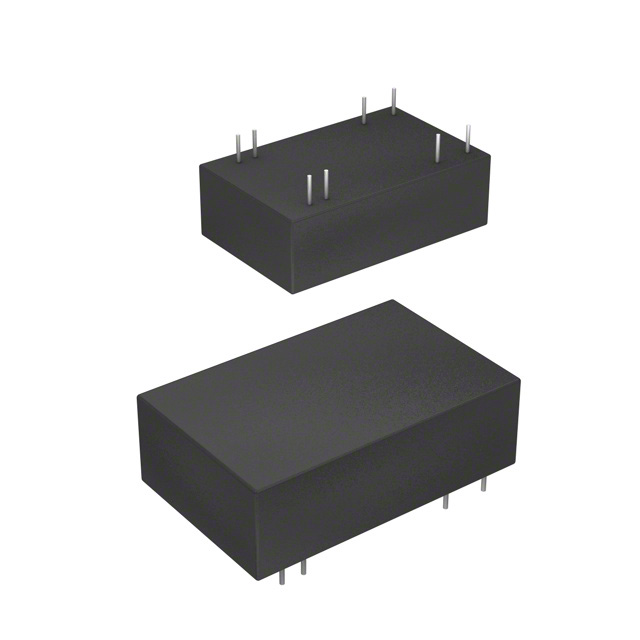

| Part Number | REC3-0505SRW/H6/A/SMD/CTRL | REC3-0505SRW/H6/A/CTRL | REC3-0505SRW/H6/A/CTRL/X2 | REC3-0505SRW/H6/A/M |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 3W | DC DC CONVERTER 5V 3W | DC DC CONVERTER 5V 3W | DC DC CONVERTER 5V 3W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tube | Tube | Tube |
