Product CatalogPart Number
RF80E561MDN1PX
Manufacturer
NichiconDescription
CAP ALUM POLY 560UF 20% 2.5V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
49,147 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RF80E561MDN1PX
RF80E561MDN1PX

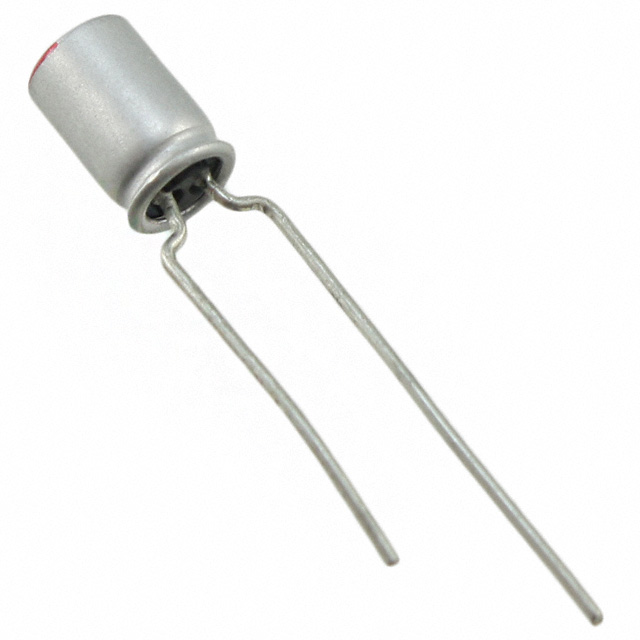

lmages are for reference only.Payment Methods
Delivery Services
560 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 2000 Hrs @ 105°C
Quick Inquiry
RF80E561MDN1PX
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Nichicon |
| Series | FPCAP, RF8 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.2 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | RF80E561MDN | RF80E561MDN1 | RF80E561MDN1JT | RF80E101MDN |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 180UF 20% 25V SMD | CAP ALUM POLY 560UF 20% 2.5V TH | CAP ALUM POLY 560UF 20% 2.5V TH | CAP ALUM HYBRID 100UF 20% 50V SM |
| Series | - | FPCAP, RF8 | FPCAP, RF8 | - |
| Packaging | Bulk | Bulk | Tape & Box (TB) | Tape & Box (TB) |
