RFBLN10050G9D0T
lmages are for reference only.RFBLN10050G9D0T
RF BALUN TRANSFORMER 900MHZ LTE
Datasheet0402 (1005 Metric), 4 PC Pad
79,501 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 699MHz ~ 960MHz 50 / 100Ohm 0402 (1005 Metric), 4 PC Pad
RFBLN10050G9D0T
| Category | RF and Wireless - Balun - |
| Manufacturer | Walsin Technology Corporation |
| Series | RFBLN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 699MHz ~ 960MHz |
| Impedance - Unbalanced/Balanced | 50 / 100Ohm |
| Phase Difference | 180° ±10° |
| Insertion Loss (Max) | 1.3dB |
| Return Loss (Min) | - |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | RFBLN1005 |
| Product Attribute |  |
 |
 |
|

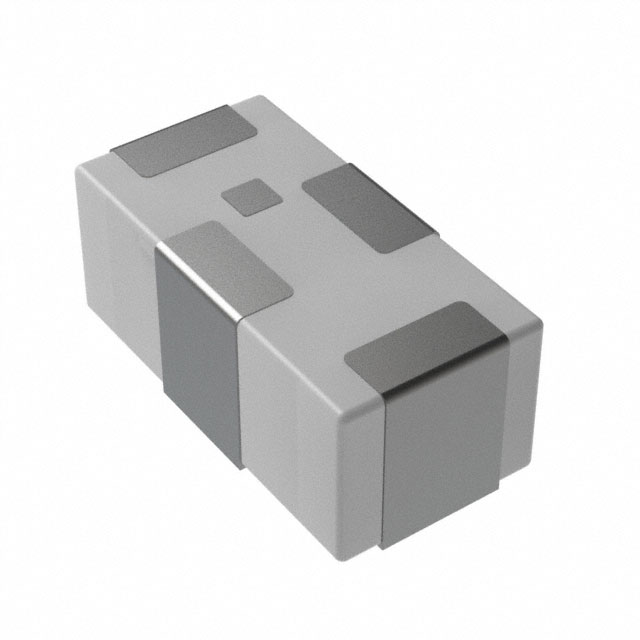

| Part Number | RFBLN1005040A1T | RFBLN1005040F0T | RFBLN1005040K5T | RFBLN1608050AAT |
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | BALUN | RF BALUN TRANSFRMR 1805-2170MHZ | RF BALUN TRANSFORMER 5GHZ WLAN | BALUN |
| Series | RFBLN | RFBLN | RFBLN | RFBLN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
