Product CatalogPart Number
RFLW5N1500AMNCS
Manufacturer
Vishay Electro-FilmsDescription
RFLW 20% WS
Datasheet
DatasheetPackage
0505 (1313 Metric)
In Stock
11,618 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RFLW5N1500AMNCS
RFLW5N1500AMNCS
lmages are for reference only.Payment Methods
Delivery Services
150 nH Unshielded Thin Film Inductor 9.3Ohm 0505 (1313 Metric)
Quick Inquiry
RFLW5N1500AMNCS
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Vishay Electro-Films |
| Series | RFLW5N |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9.3Ohm |
| Q @ Freq | 18 @ 250MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0505 (1313 Metric) |
| Supplier Device Package | 0505 |
| Size / Dimension | 0.050" L x 0.050" W (1.27mm x 1.27mm) |
| Height - Seated (Max) | 0.021" (0.53mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | RFLW5N1500AMNCS | RFLW5N1500AMNT1 | RFLW5N1500AMNWS | RFLW5N1500AKNWS |
| Manufacturer | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RFLW 20% WS | RFLW 20% T1 | RFLW 20% WS | RFLW 10% WS |
| Series | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films | Vishay Electro-Films |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tray |
Customers Also Interested in
Recommended Products
RFLW5N1000AMNT1
Vishay Electro-Films
RFLW5N1000AMNWS
Vishay Electro-Films
RFLW5N1200AMNT1
Vishay Electro-Films
RFLW5N1200AMNWS
Vishay Electro-Films
RFLW5N1200AMNWS
Vishay Electro-Films
RFLW5N1500AKNWS
Vishay Electro-Films
RFLW5N1500AMNCS
Vishay Electro-Films

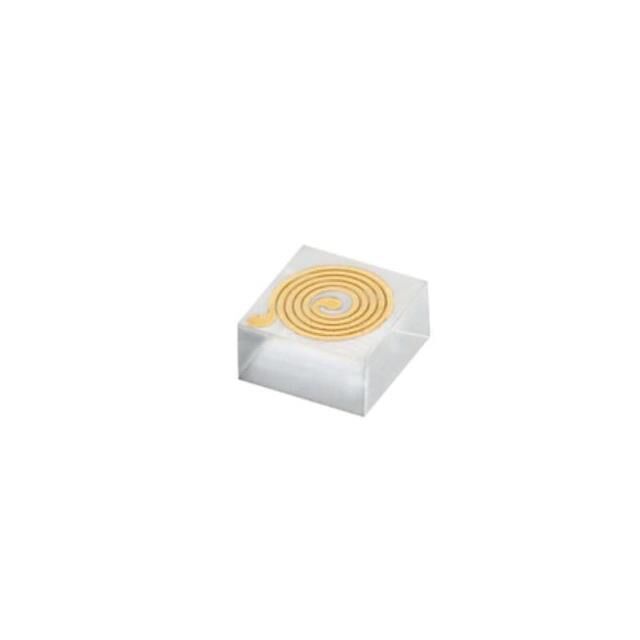

RFLW5N1500AMNT1
Vishay Electro-Films
RFLW5N1500AMNWS
Vishay Electro-Films
RFLW5N1800BMNT1
Vishay Electro-Films

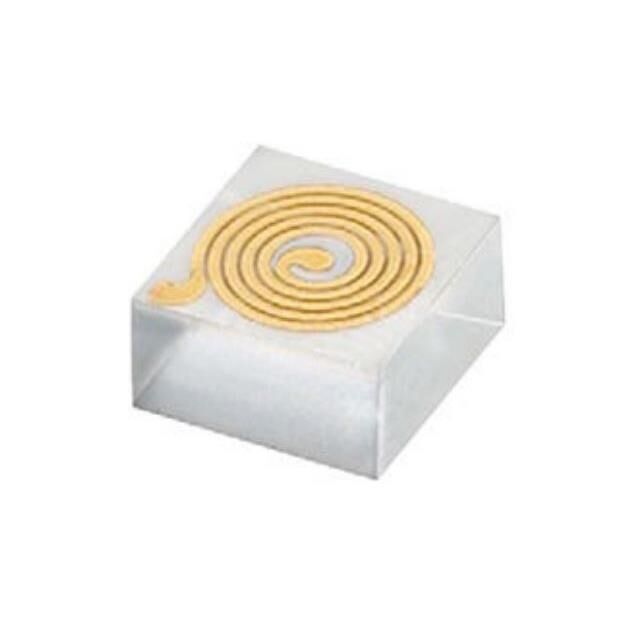

RFLW5N1800BMNWS
