Product CatalogPart Number
RGB24750W045A-003
Manufacturer
TDK-LambdaDescription
DC/DC CONVERTER 3.3-18V 750W
Datasheet
DatasheetPackage
10-DIP Module
In Stock
15,345 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

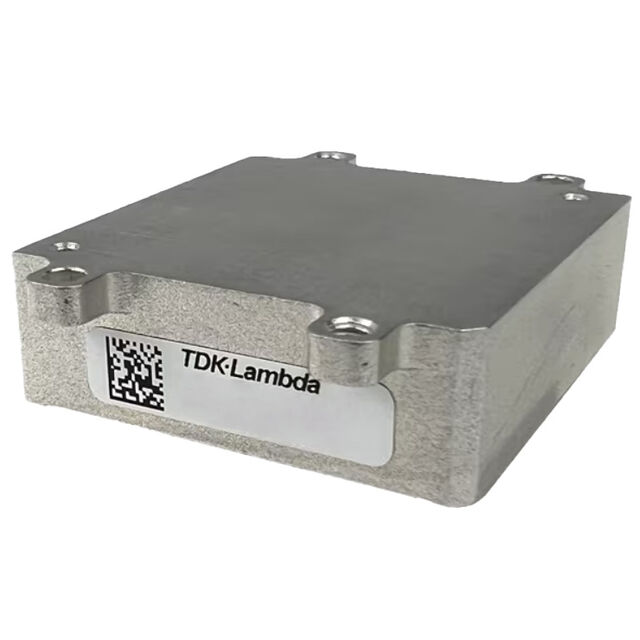

RGB24750W045A-003
RGB24750W045A-003
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3 ~ 18V 45A 18V - 32V Input
Quick Inquiry
RGB24750W045A-003
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | TDK-Lambda |
| Series | RGB (750W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 3.3 ~ 18V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 45A |
| Power (Watts) | 750 W |
| Applications | - |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 98.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 1.95" L x 1.50" W x 0.51" H (49.5mm x 38.1mm x 13.0mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE, UKCA |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | RGB24750W045A-001 | RGA24250W014A-001 | RGA24250W014A-003 | RGA4W250W010A-001 |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC CONVERTER 3.3-18V 750W | DC DC CONVERTER 3.3-24V 250W | DC DC CONVERTER 3.3-24V 250W | DC DC CONVERTER 3.3-40V 250W |
| Series | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Packaging | Bulk | Tray | Tray | Tray |
