Product CatalogPart Number
RHEF050US
Manufacturer
Littelfuse Inc.Description
PTC RESET FUSE 30V 500MA RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
43,205 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

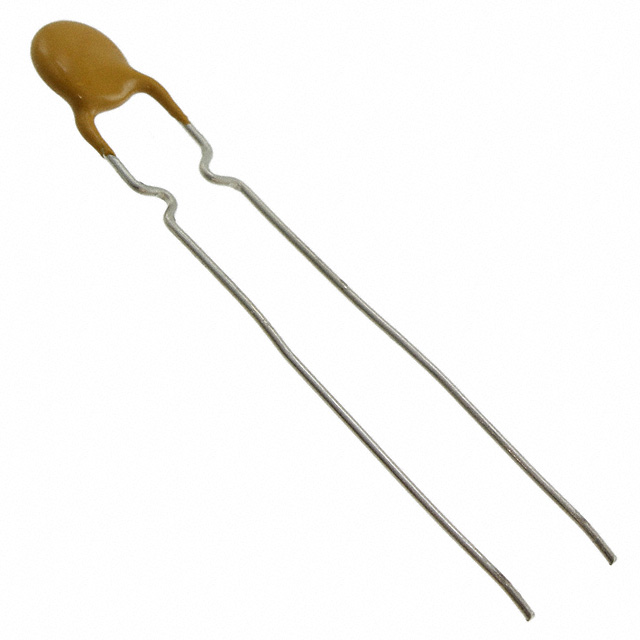

RHEF050US
RHEF050US
lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 500 mA Ih Through Hole Radial, Disc
Quick Inquiry
RHEF050US
Specifications
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | PolySwitch®, RHEF |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 920 mA |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.201" Dia x 0.118" T (5.10mm x 3.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.199" (5.05mm) |
| Approval Agency | CSA, TUV, UL |
| Time to Trip | 2.5 s |
| Resistance - Initial (Ri) (Min) | 480 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.1 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | RHEF050US-2 | RHEF050 | RHEF050-2 | RHEF050-AP |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 30V 500MA RADIAL | PTC RESET FUSE 30V 500MA RADIAL | PTC RESET FUSE 30V 500MA RADIAL | PTC RESET FUSE 30V 500MA RADIAL |
| Series | PolySwitch®, RHEF | PolySwitch®, RHEF | PolySwitch®, RHEF | PolySwitch®, RHEF |
| Packaging | Tape & Reel (TR) | Bag | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) |
