RJE3A18864A1
lmages are for reference only.RJE3A18864A1
8P8C, RA, CAT5E, SMT, SHIELD WIT
Datasheet-
65,580 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5e
RJE3A18864A1
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | RJE3A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Surface Mount |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Shielded |
| Ratings | Cat5e |
| Features | - |
| LED Color | Green, Yellow - Green, Yellow |
| Ingress Protection | - |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Thermoplastic |
| Operating Temperature | -55°C ~ 85°C |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

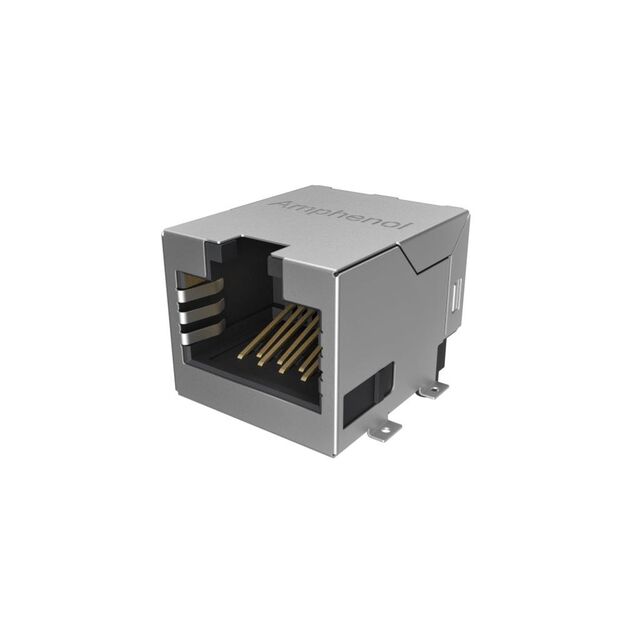

| Part Number | RJE3A18864A2 | RJE3A1886102N | RJE3A1886401 | RJE3A1886402 |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | 8P8C, RA, CAT5E, SMT, SHIELD WIT | MODULAR JACK - 8P8C, RA, CAT5E, | 8P8C, RA, CAT5E, SMT, SHIELD WIT | 8P8C, RA, CAT5E, SMT, SHIELD WIT |
| Series | RJE3A | RJE3A | RJE3A | RJE3A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
