Product CatalogPart Number
RJP5-10-0010
Manufacturer
Stewart ConnectorDescription
DUAL PORT RJ POINT FIVE CONNECTO
Datasheet
DatasheetPackage
-
In Stock
27,400 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RJP5-10-0010
RJP5-10-0010
lmages are for reference only.Payment Methods
Delivery Services
Jack Modular Connector 8p8c (RJ Point Five, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
Quick Inquiry
RJP5-10-0010
Specifications
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | Stewart Connector |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Jack, High Density |
| Number of Positions/Contacts | 8p8c (RJ Point Five, Ethernet) |
| Number of Ports | 2 |
| Number of Rows | 1 |
| Mounting Type | Board Edge; Panel Mount; Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Shielded, EMI Finger |
| Ratings | Cat5e |
| Features | Board Lock |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Tab Direction | Side |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Thermoplastic |
| Operating Temperature | - |
| Base Product Number | RJP5-10 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

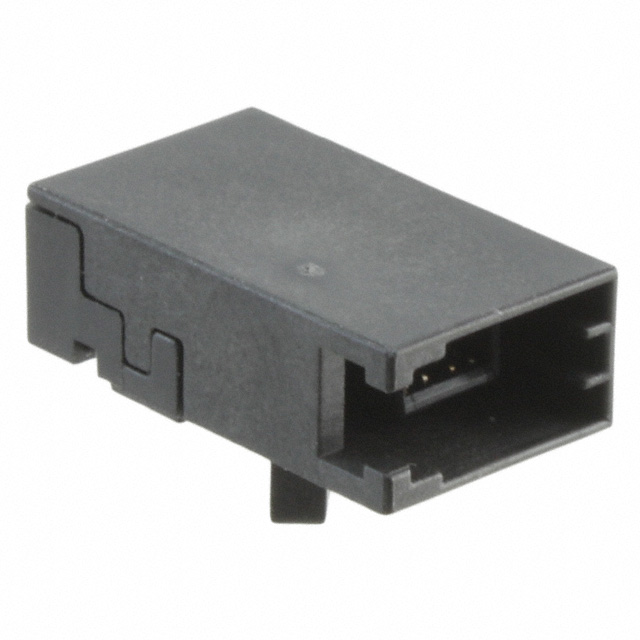

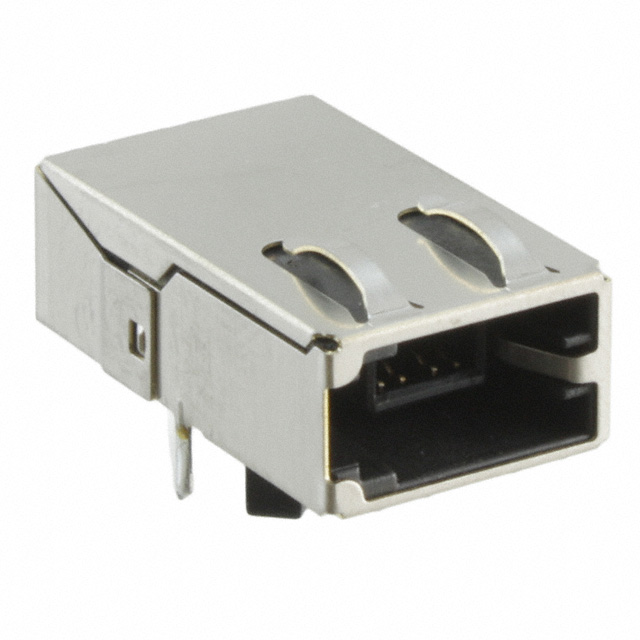

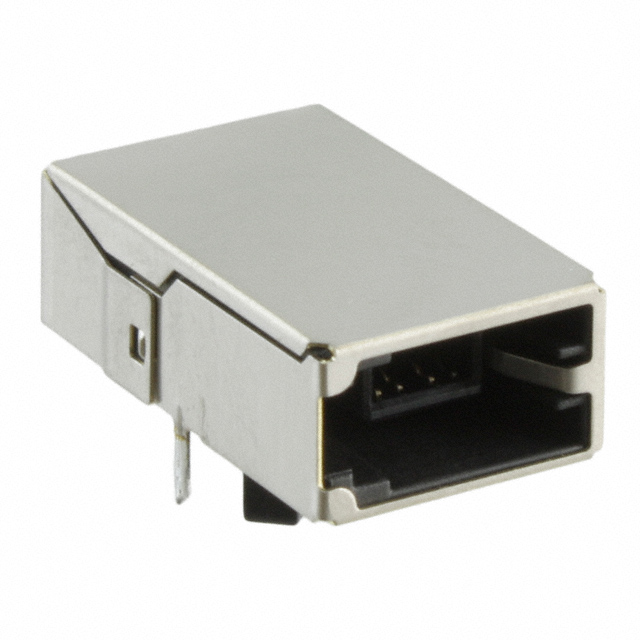

| Part Number | RJP5-10-0001 | RJP5-10-0002 | RJP5-10-0003 | RJP5-10-0004 |
| Manufacturer | Stewart Connector | Stewart Connector | Stewart Connector | Stewart Connector |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN MOD JACK 8P8C R/A UNSHLD | CONN MOD JACK 8P8C R/A SHIELDED | CONN MOD JACK 8P8C R/A SHIELDED | CONN MOD JACK 8P8C R/A SHIELDED |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
