RL-1256-5-22

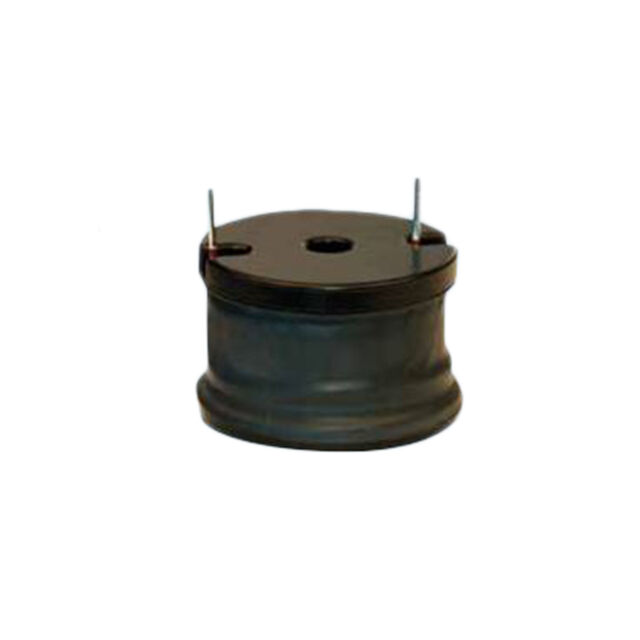

lmages are for reference only.RL-1256-5-22
FIXED IND 22UH 27A 7MOHM TH
DatasheetRadial, Vertical Cylinder
47,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Wirewound Inductor 27 A 7mOhm Max Radial, Vertical Cylinder
RL-1256-5-22
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Renco Electronics, Inc. |
| Series | RL-1256 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 27 A |
| Current - Saturation (Isat) | 42A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 1.600" Dia (40.64mm) |
| Height - Seated (Max) | 1.500" (38.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RL-1256-5-2200 | RL-1256-5-470 | RL-1256-5-56 | RL-1256-5-8200 |
| Manufacturer | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2200UH 5.5A 338MOHM TH | FIXED IND 470UH 11.4A 78MOHM TH | FIXED IND 56UH 21A 13MOHM TH | FIXED IND 8200UH 2.8A 1260MOHM T |
| Series | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
