RL-1256-6-330

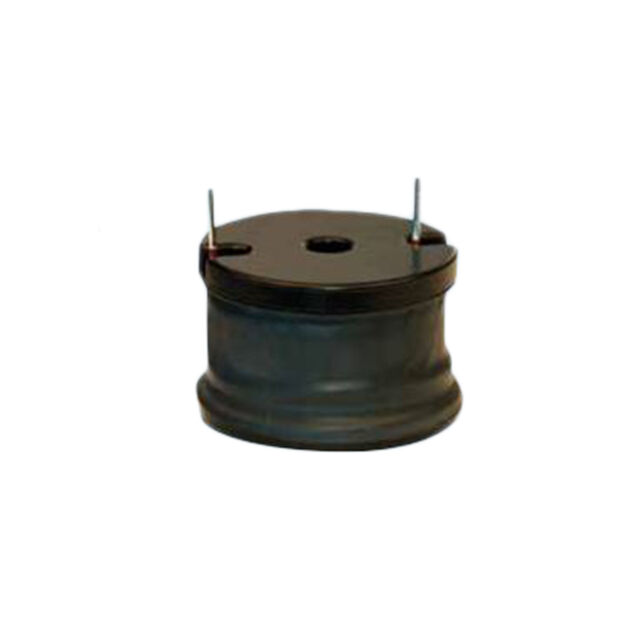

lmages are for reference only.RL-1256-6-330
FIXED IND 330UH 21A 28MOHM TH
DatasheetRadial, Vertical Cylinder
19,875 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Wirewound Inductor 17 A 40mOhm Max Radial, Vertical Cylinder
RL-1256-6-330
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Renco Electronics, Inc. |
| Series | RL-1256 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 14.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 1.500" (38.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RL-1256-6-120 | RL-1256-6-2200 | RL-1256-1-10 | RL-1256-1-100 |
| Manufacturer | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 20UH 27A 15MOHM TH | FIXED IND 2200UH 7.2 270MOHM TH | FIXED IND 10UH 9A 3MOHM TH | FIXED IND 100UH 2.8A 95MOHM TH |
| Series | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
