RL-1256-8-270

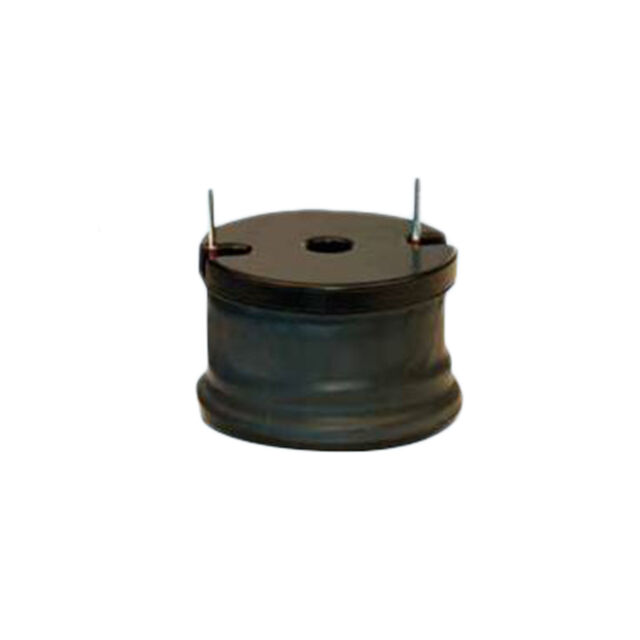

lmages are for reference only.RL-1256-8-270
FIXED IND 270UH 30A 14MOHM TH
DatasheetRadial, Vertical Cylinder
80,128 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
270 µH Unshielded Wirewound Inductor 30 A 14mOhm Max Radial, Vertical Cylinder
RL-1256-8-270
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Renco Electronics, Inc. |
| Series | RL-1256 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 32A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 2.400" Dia (60.96mm) |
| Height - Seated (Max) | 2.600" (66.04mm) |
| Base Product Number | RL-1256 |
| Product Attribute |  |
 |
|
|
| Part Number | RL-1256-8-27 | RL-1256-8-10 | RL-1256-8-10 | RL-1256-8-10 |
| Manufacturer | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 27UH 55A 2.6MOHM TH | FIXED IND 10UH 55A 1.7MOHM TH | FIXED IND 10UH 55A 1.7MOHM TH | FIXED IND 10UH 55A 1.7MOHM TH |
| Series | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
