RL-5480HC-1-1000

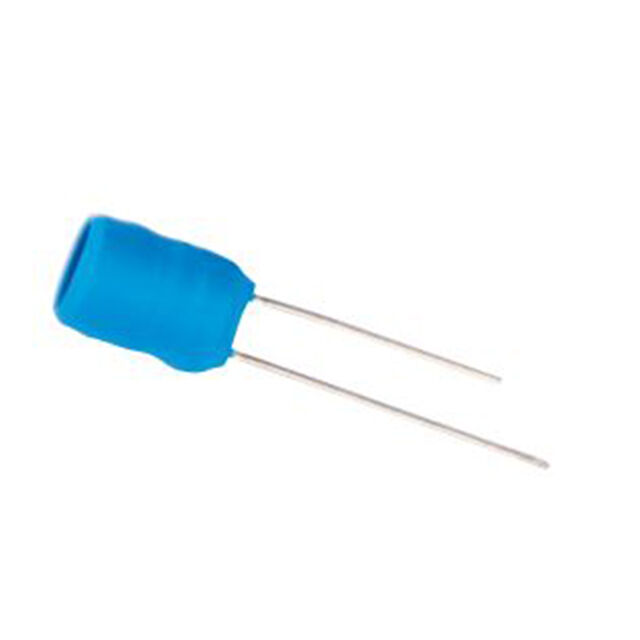

lmages are for reference only.RL-5480HC-1-1000
FIXED IND 1000UH .220A 5.63OHM T
DatasheetRadial, Vertical Cylinder
80,214 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mH Unshielded Drum Core, Wirewound Inductor 220 mA 5.63Ohm Max Radial, Vertical Cylinder
RL-5480HC-1-1000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Renco Electronics, Inc. |
| Series | RL-5480HC-1 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | 215mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.63Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.224" Dia (5.70mm) |
| Height - Seated (Max) | 0.291" (7.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RL-5480HC-1-220 | RL-5480HC-1-4700 | RL-5480HC-2-1000 | RL-5480HC-2-220 |
| Manufacturer | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH .455A 1.3OHM TH | FIXED IND 4700UH .095A 29.2OHM T | FIXED IND 1000UH .380A 2.67OHM T | FIXED IND 220UH .830A 650MOHM TH |
| Series | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. | Renco Electronics, Inc. |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
