RLB0912-331KL

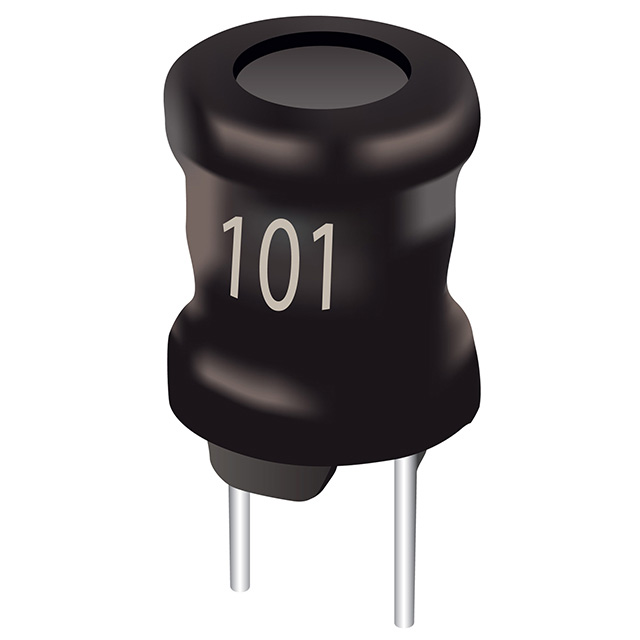

lmages are for reference only.RLB0912-331KL
FIXED IND 330UH 700MA 1.1 OHM TH
DatasheetRadial, Vertical Cylinder
83,286 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Unshielded Drum Core, Wirewound Inductor 700 mA 1.1Ohm Max Radial, Vertical Cylinder
RLB0912-331KL
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | RLB |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 620mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | 25 @ 796kHz |
| Frequency - Self Resonant | 3.6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Base Product Number | RLB0912 |
| Product Attribute |  |
 |
 |
 |
| Part Number | RLB0912-100KL | RLB0912-101KL | RLB0912-102KL | RLB0912-151KL |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 2.5A 43 MOHM TH | FIXED IND 100UH 1A 330 MOHM TH | FIXED IND 1MH 400MA 4.3 OHM TH | FIXED IND 150UH 920MA 560MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
