RLP73M1JR056JTD

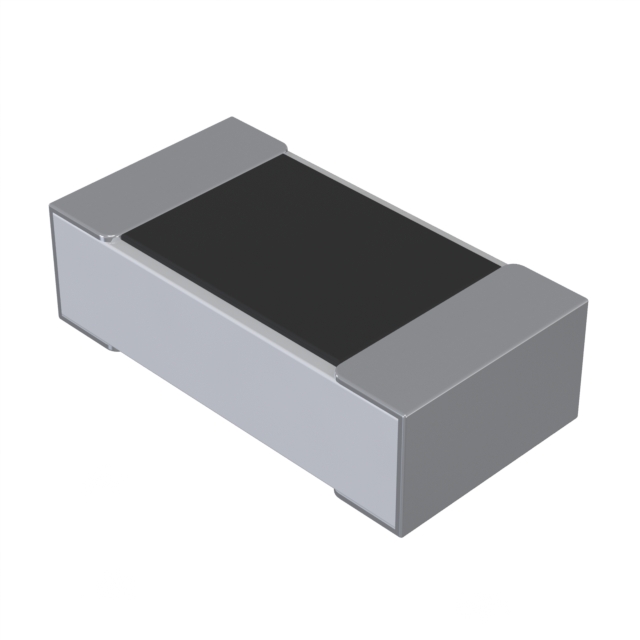

lmages are for reference only.RLP73M1JR056JTD
RES 0.056 OHM 5% 1/8W 0603
Datasheet0603 (1608 Metric)
42,177 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 mOhms ±5% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Current Sense Thick Film
RLP73M1JR056JTD
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TE Connectivity Passive Product |
| Series | RL73, CGS |
| Resistance | 56 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±400ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | RLP73M1 |
| Product Attribute |  |
 |
 |
 |
| Part Number | RLP73M1JR051JTD | RLP73M1JR062FTDF | RLP73M1JR062JTD | RLP73M1JR068JTD |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.051 OHM 5% 1/8W 0603 | RES 0.062 OHM 1% 1/8W 0603 | RES 0.062 OHM 5% 1/8W 0603 | RES 0.068 OHM 5% 1/8W 0603 |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
