Product CatalogPart Number
RLS-226
Manufacturer
Recom PowerDescription
FIXED IND 22UH 630MA 700MOHM SMD
Datasheet
DatasheetPackage
1812 (4532 Metric)
In Stock
34,478 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RLS-226
RLS-226
lmages are for reference only.Payment Methods
Delivery Services
22 µH Unshielded Wirewound Inductor 630 mA 700mOhm Max 1812 (4532 Metric)
Quick Inquiry
RLS-226
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Recom Power |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 630 mA |
| Current - Saturation (Isat) | 1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

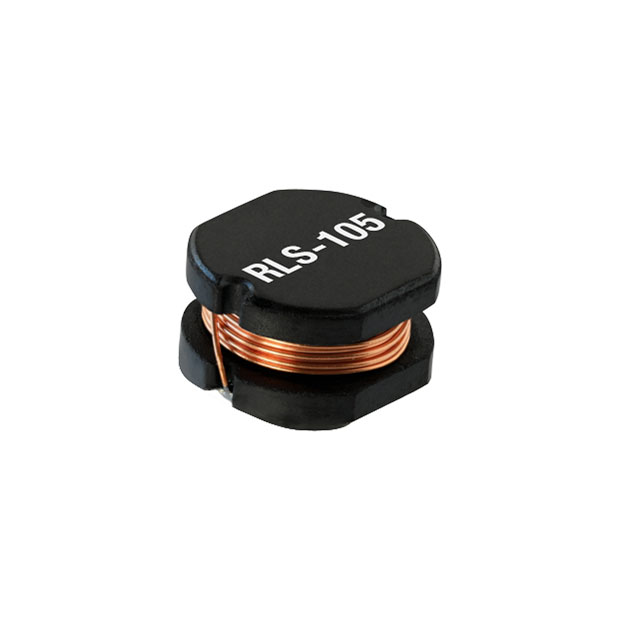

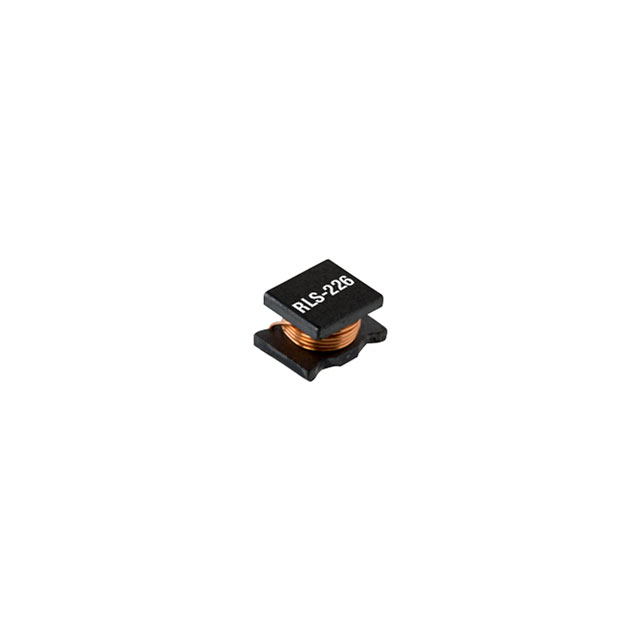

| Part Number | RLS-226-R | RLS-105 | RLS-105-R | RLS-105-R |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 630MA 700MOHM SMD | FIXED IND 100UH 1.02A 350MOHM SM | FIXED IND 100UH 1.02A 350MOHM SM | FIXED IND 100UH 1.02A 350MOHM SM |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
