RM302024

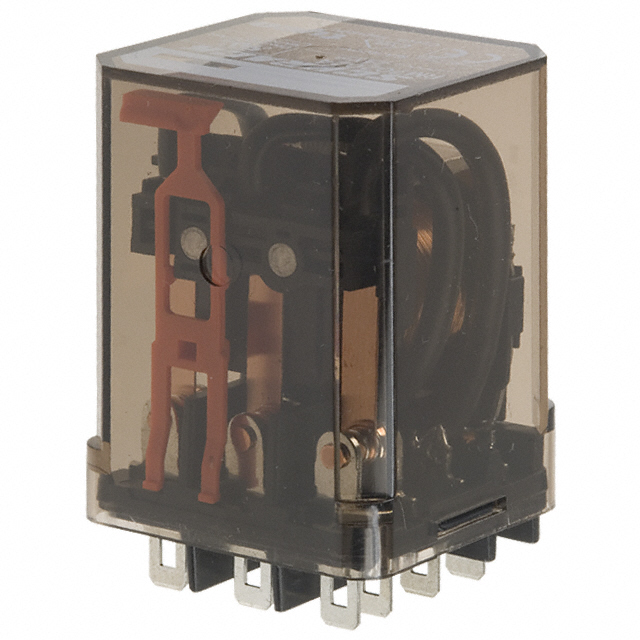

lmages are for reference only.RM302024
RELAY GEN PURPOSE 3PDT 10A 24V
Datasheet-
44,953 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
RM302024
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RM, SCHRACK |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 50 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 60°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 475 Ohms |
| Base Product Number | RM3020 |
| Product Attribute |  |
 |
 |
|
| Part Number | RM302012 | RM302524 | RM85-2011-35-1003 | RM699BV-3011-85-1005 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Altech Corporation | Altech Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE 3PDT 10A 12V | RELAY GEN PURPOSE 3PDT 10A 24V | RELAY GEN PURPOSE SPDT 16A 3V | RELAY GEN PURPOSE SPDT 6A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Altech Corporation | Altech Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
