Product CatalogPart Number
RM84-2022-25-5120
Manufacturer
Altech CorporationDescription
RELAY GEN PURPOSE DPST 8A 120V
Datasheet
DatasheetPackage
-
In Stock
94,106 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RM84-2022-25-5120
RM84-2022-25-5120
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Through Hole
Quick Inquiry
RM84-2022-25-5120
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Altech Corporation |
| Series | RM84 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 120VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 3520VA |
| Coil Current | 11.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | - |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CE, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 10.2 kOhms |
| Base Product Number | RM84-2022 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | RM84-2022-25-5230 | RM84-2022-25-1012 | RM84-2022-25-1024 | RM84-2022-25-1110 |
| Manufacturer | Altech Corporation | Altech Corporation | Altech Corporation | Altech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPST 8A 230V | RELAY GEN PURPOSE DPST 8A 12V | RELAY GEN PURPOSE DPST 8A 24V | RELAY GEN PURPOSE DPST 8A 110V |
| Series | Altech Corporation | Altech Corporation | Altech Corporation | Altech Corporation |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

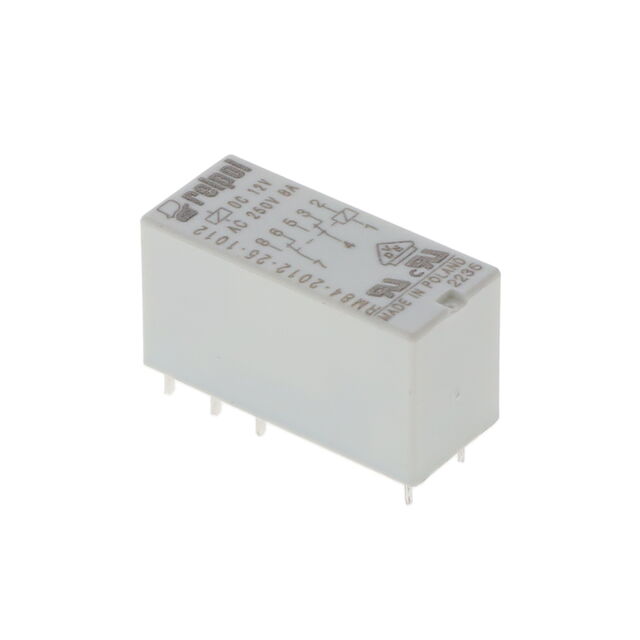

RM84-2012-25-1012
Altech Corporation
RM84-2012-25-1024
Altech Corporation
RM84-2012-25-1110
Altech Corporation
RM84-2012-25-5024
Altech Corporation
RM84-2012-25-5110
Altech Corporation
RM84-2012-25-5120
Altech Corporation
RM84-2012-25-5230
Altech Corporation
RM84-2012-35-1003
Altech Corporation
RM84-2012-35-1005
Altech Corporation
RM84-2012-35-1006
Altech Corporation
RM84-2012-35-1009
Altech Corporation
RM84-2012-35-1012
Altech Corporation
RM84-2012-35-1018
Altech Corporation
RM84-2012-35-1024
Altech Corporation
RM84-2012-35-1036
Altech Corporation
RM84-2012-35-1048
Altech Corporation

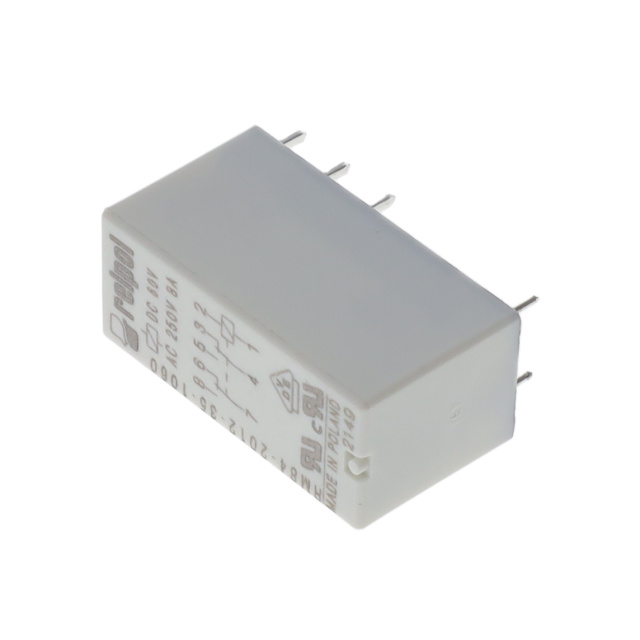

RM84-2012-35-1060
