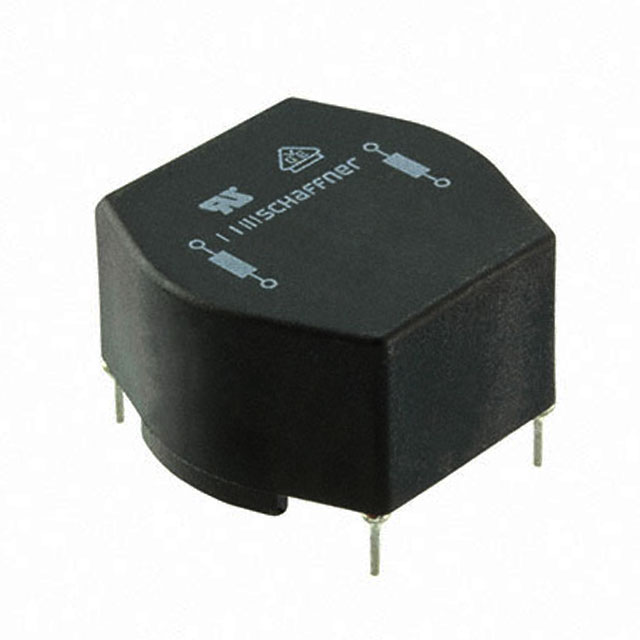

lmages are for reference only.RN142-0.5-02-82M
CMC 82MH 500MA 2LN TH
DatasheetHorizontal, 4 PC Pin
84,613 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 2.7Ohm (Typ)
RN142-0.5-02-82M
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Schaffner EMC Inc. |
| Series | RN |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 82 mH @ 10 kHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 2.7Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 300V |
| Operating Temperature | -40°C ~ 100°C |
| Ratings | - |
| Approval Agency | ENEC, UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.303" L x 1.280" W (33.10mm x 32.50mm) |
| Height (Max) | 0.787" (20.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | RN142 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RN142-0.5-02 | RN142-1-02 | RN142-1-02-33M | RN142-1.4-02 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CMC 82MH 500MA 2LN TH | CMC 33MH 1A 2LN TH | CMC 33MH 1A 2LN TH | CMC 27MH 1.4A 2LN TH |
| Series | RN | RN | RN | RN |
| Packaging | Tray | Tray | Tube | Tray |
