Pre-Biased Bipolar Transistor (BJT) 2 PNP - Pre-Biased (Dual) 50V 100mA 200MHz 200mW Surface Mount USV
RN2703,LF
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 200MHz |
| Power - Max | 200mW |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | USV |
| Base Product Number | RN2703 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
.jpg "RN2503(TE85L,F)") |

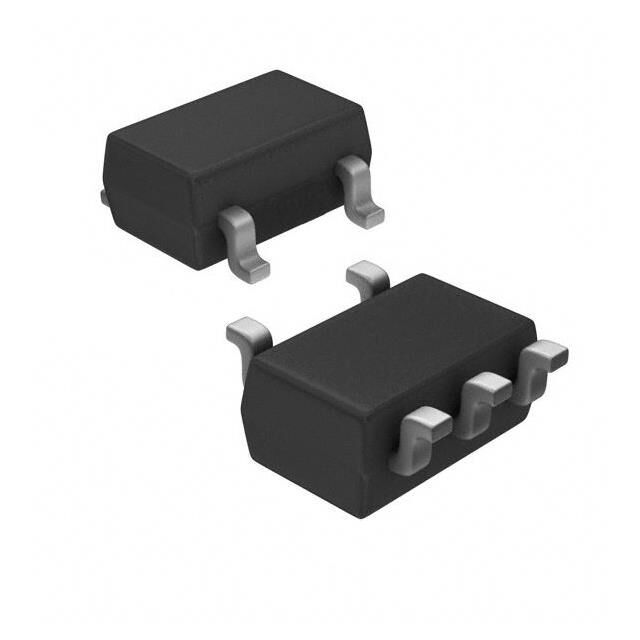

.jpg "RN2504(TE85L,F)") |
| Part Number | RN2703JE(TE85L,F) | RN2502(TE85L,F) | RN2503(TE85L,F) | RN2504(TE85L,F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TRANS 2PNP PREBIAS 0.1W ESV | TRANS 2PNP PREBIAS 0.3W SMV | TRANS 2PNP PREBIAS 0.3W SMV | TRANS 2PNP PREBIAS 0.3W SMV |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

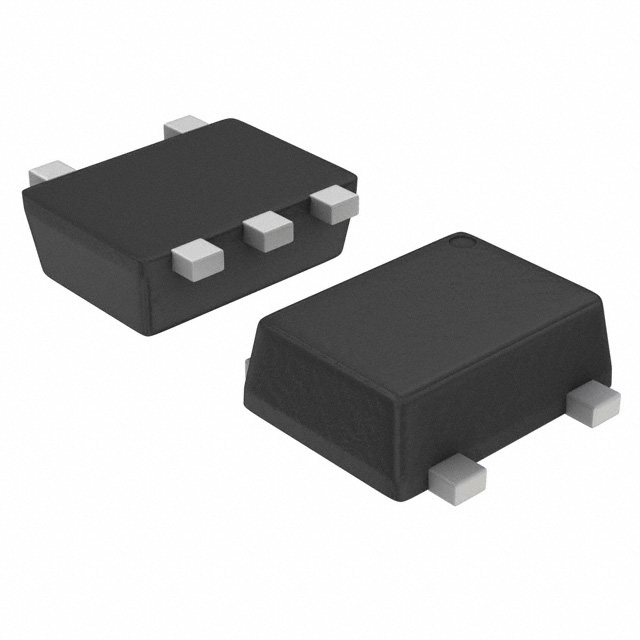

.jpg "RN2701JE(TE85L,F)")
