RN731JTTD2773F100
lmages are for reference only.RN731JTTD2773F100
RES 277K OHM 1% 1/16W 0603
Datasheet0603 (1608 Metric)
36,536 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
277 kOhms ±1% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Moisture Resistant Thin Film
RN731JTTD2773F100
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | KOA Speer Electronics, Inc. |
| Series | RN73 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 277 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thin Film |
| Features | Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | RN731J |
| Product Attribute |  |
 |
 |
 |

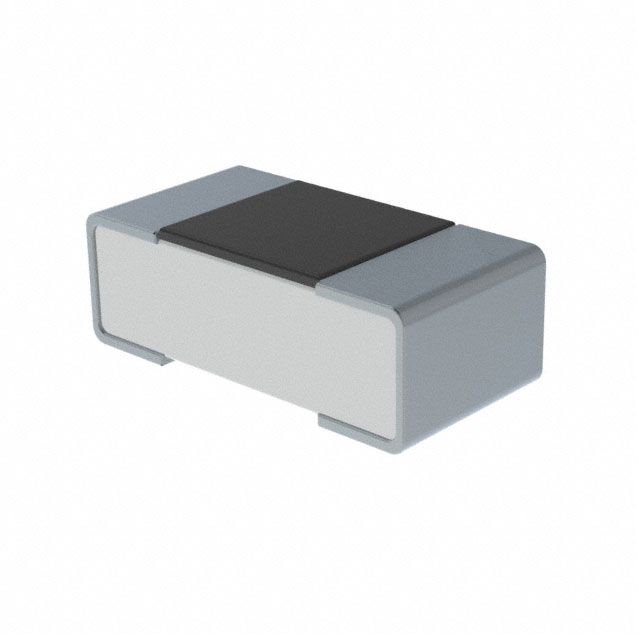

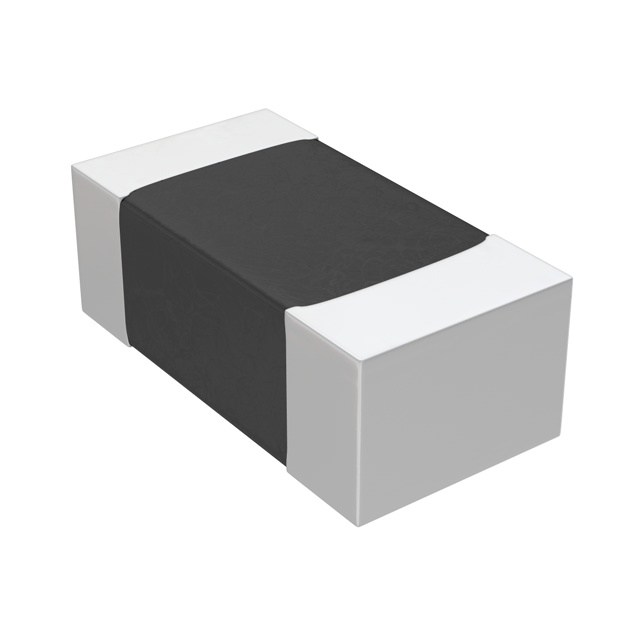

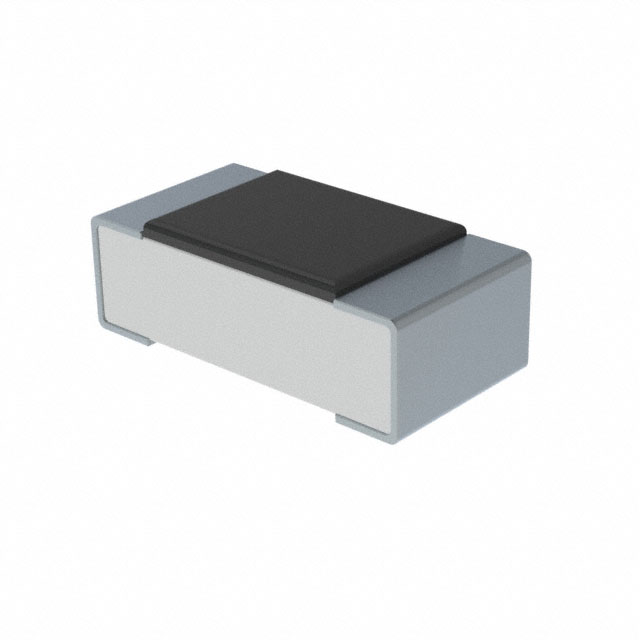

| Part Number | RNCF0402DTE205K | RN73H1ETTP2553B25 | RN73H1ETTP1330F50 | RN73R1JTTD2611B25 |
| Manufacturer | Stackpole Electronics Inc | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 205K OHM 0.5% 1/10W 0402 | RES 255K OHM 0.1% 1/16W 0402 | RES 133 OHM 1% 1/16W 0402 | RES 2.61K OHM 0.1% 1/10W 0603 |
| Series | Stackpole Electronics Inc | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. | KOA Speer Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
