RP115L291B5-E2
lmages are for reference only.RP115L291B5-E2
IC REG LIN 2.95V 500MA DFN1216-8
Datasheet8-XFDFN Exposed Pad
47,592 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DFN1216-8
RP115L291B5-E2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | RP115x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 2.95V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.09V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 160 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN Exposed Pad |
| Supplier Device Package | DFN1216-8 |
| Base Product Number | RP115 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

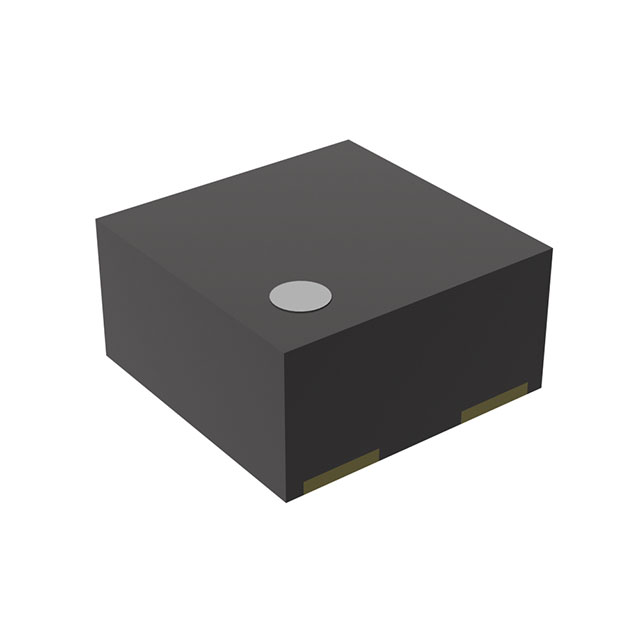

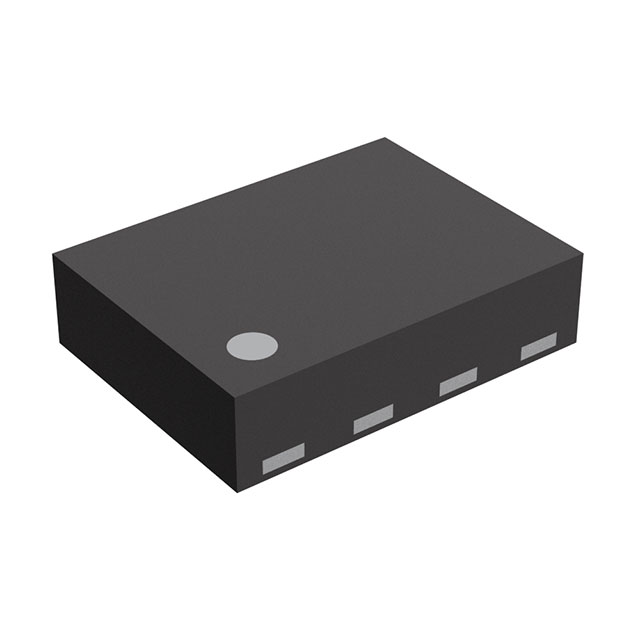

| Part Number | RP115L291D-E2 | RP115L291D5-E2 | RP110K081B-TR | RP110K081D-TR |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LIN 2.9V 500MA DFN1216-8 | IC REG LINEAR 2.95V 1A DFN1216-8 | IC REG LIN 0.8V 150MA DFN0808-4 | IC REG LIN 0.8V 150MA DFN0808-4 |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
