RP506K101B-TR

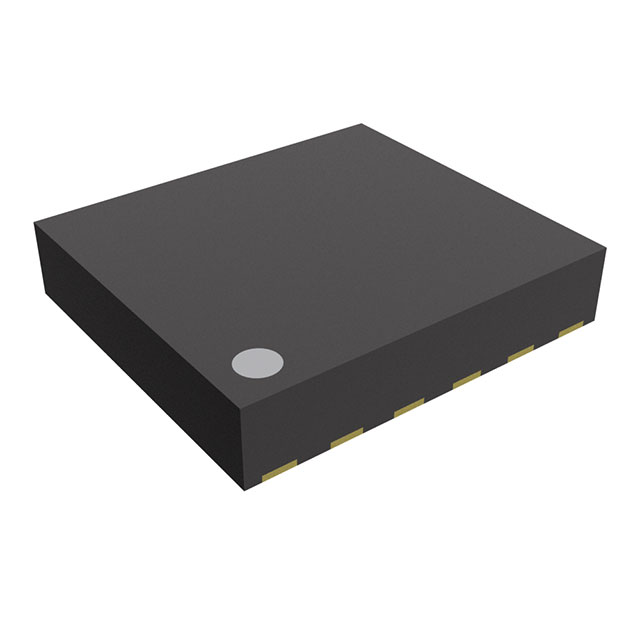

lmages are for reference only.RP506K101B-TR
IC REG BUCK 1V 2A 10DFN
Datasheet10-UFDFN Exposed Pad
93,382 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Fixed 1V 1 Output 2A 10-UFDFN Exposed Pad
RP506K101B-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | RP505K |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | - |
| Current - Output | 2A |
| Frequency - Switching | 2.25MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PL)2527-10 |
| Base Product Number | RP506 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RP506K101A-TR | RP506K101E-TR | RP506K111D-TR | RP506K111E-TR |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG BUCK 1V 2A 10DFN | IC REG BUCK 1V 2A 10DFN | IC REG BUCK 1.1V 2A 10DFN | IC REG BUCK 1.1V 2A 10DFN |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
