Product CatalogPart Number
RQ3E100MNTB1
Manufacturer
Rohm SemiconductorDescription
MOSFET N-CH 30V 10A HSMT8
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
58,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RQ3E100MNTB1
RQ3E100MNTB1

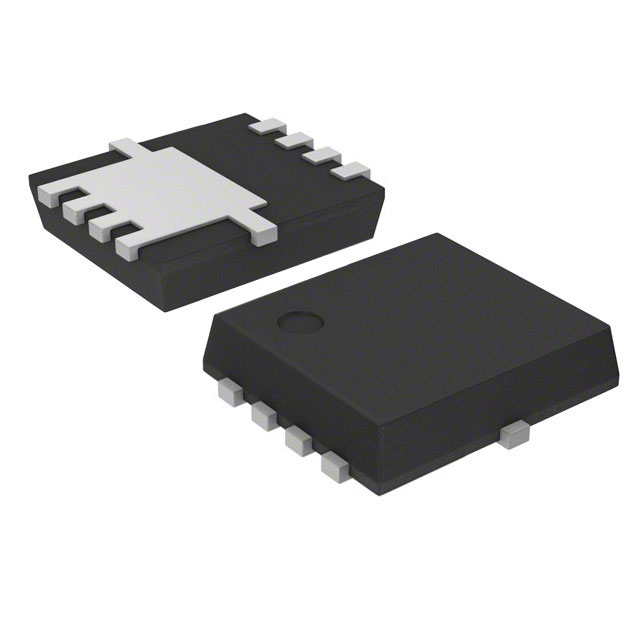

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 30 V 10A (Ta) 2W (Ta) Surface Mount 8-HSMT (3.2x3)
Quick Inquiry
RQ3E100MNTB1
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12.3mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 520 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HSMT (3.2x3) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | RQ3E100 |
| Gate Charge (Qg) (Max) @ Vgs | 9.9 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | RQ3E100ATTB | RQ3E100BNTB | RQ3E100BNTB1 | RQ3E100GNTB |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET P-CH 30V 10A/31A 8HSMT | MOSFET N-CH 30V 10A 8HSMT | NCH 30V 21A POWER MOSFET: RQ3E10 | MOSFET N-CH 30V 10A 8HSMT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
