RQRA-2328-2536-CR
lmages are for reference only.RQRA-2328-2536-CR
VCO 2328MHZ-2536MHZ SMD .5X.5"
Datasheet16-QFN, Variant
24,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.432GHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 7 ±2 dBm -15 2nd Harmonic Typ (dBc)
RQRA-2328-2536-CR
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Raltron Electronics |
| Series | RQRA VCO |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 2.328 ~ 2.536GHz |
| Frequency - Center | 2.432GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
| 2nd Harmonic, Typ (dBc) | -15 |
| Icc Max | 35mA |
| Pushing (MHz/V) | 1.5 |
| Power (dBm) | 7 ±2 |
| Phase Noise Typ (dBc/Hz) | -105 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.232" (5.89mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | RQRA-2328-2536-CR | RQRA-2328-2536-CR | RQRA-0433-0484 | RQRA-1000-1500 |
| Manufacturer | Raltron Electronics | Raltron Electronics | Raltron Electronics | Raltron Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

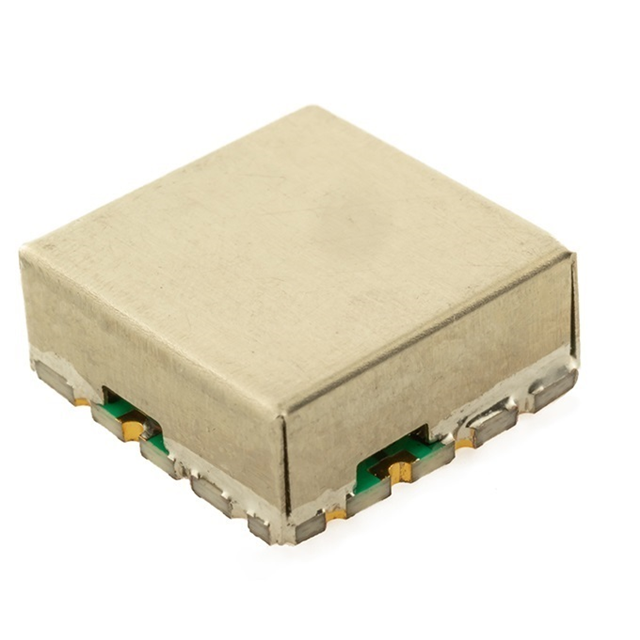

| Description | VCO 2328MHZ-2536MHZ SMD .5X.5" | VCO 2328MHZ-2536MHZ SMD .5X.5" | VCO 433MHZ-484MHZ SMD .5X.5" | VCO 10000MHZ-1500MHZ SMD .5X.5" |
| Series | RQRA VCO | RQRA VCO | RQRA VCO | RQRA VCO |
| Packaging | Strip | Strip | Strip | Strip |
