Product CatalogPart Number
RS3-243.3DZ
Manufacturer
Recom PowerDescription
DC DC CONVERTER +/-3.3V 3W
Datasheet
DatasheetPackage
8-SIP Module, 7 Leads
In Stock
41,429 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

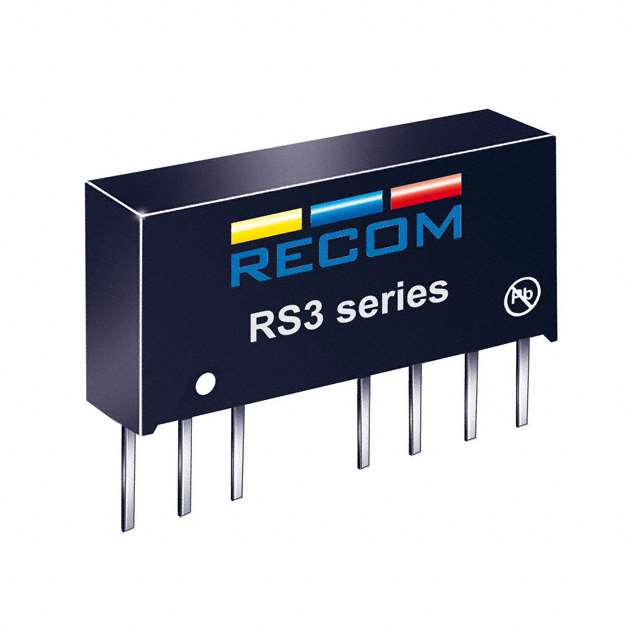

RS3-243.3DZ
RS3-243.3DZ
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 3.3V -3.3V 300mA, 300mA 9V - 27V Input
Quick Inquiry
RS3-243.3DZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE RS3 (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 27V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | -3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA, 300mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 73% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | RS3-243.3 |
| Voltage - Isolation | 1 kV |
