RSH2-243.3S/H3-R

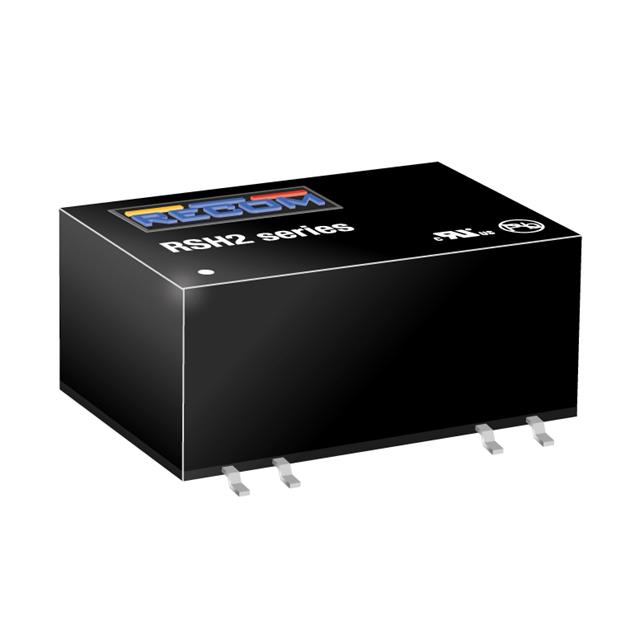

lmages are for reference only.RSH2-243.3S/H3-R
DC DC CONVERTER 3.3V 1.65W
Datasheet14-SMD Module, 7 Leads
94,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 500mA 18V - 36V Input
RSH2-243.3S/H3-R
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | RSH2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 1.65 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 75% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 7 Leads |
| Size / Dimension | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | RSH2-243.3S/H2 | RSH2-243.3S/H2-R | RSH2-243.3S/H3 | RSH2-2405S/H2 |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 1.65W | DC DC CONVERTER 3.3V 1.65W | DC DC CONVERTER 3.3V 1.65W | DC DC CONVERTER 5V 2W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
