RT214012
lmages are for reference only.RT214012
RELAY GEN PURPOSE SPDT 12A 12V
Datasheet-
49,375 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
RT214012
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RT1, SCHRACK |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4800VA |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, CSA, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 360 Ohms |
| Base Product Number | RT2140 |
| Product Attribute |  |
|
 |
 |

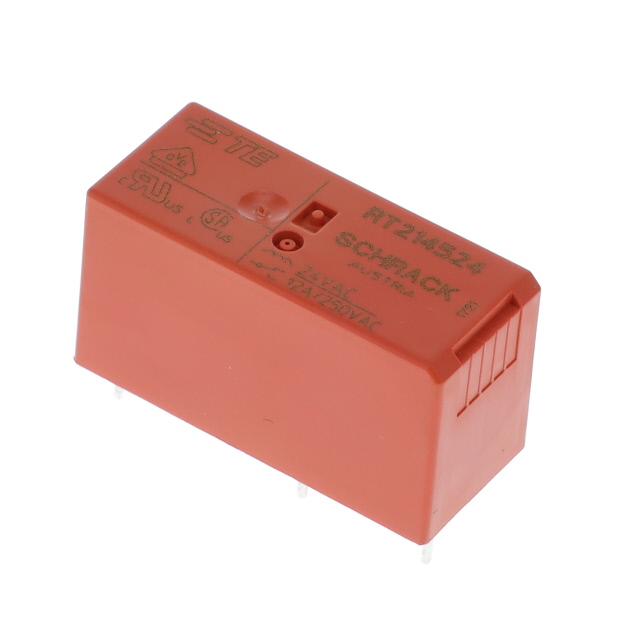

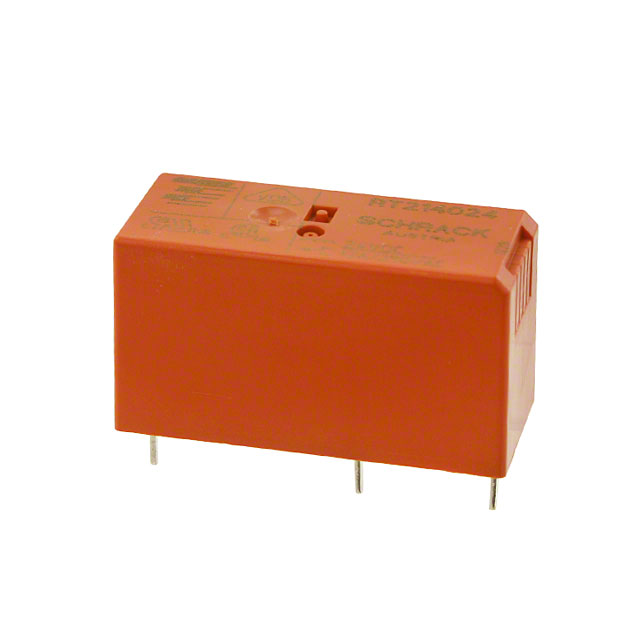

| Part Number | RT214005 | RT214006 | RT214024 | RT214524 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 12A 5V | RELAY GEN PURPOSE SPDT 12A 6V | RELAY GEN PURPOSE SPDT 12A 24V | RELAY GEN PURPOSE SPDT 12A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tube | Tube | Tube |
