RT2517AGQV
lmages are for reference only.RT2517AGQV
IC REG LINEAR POS ADJ 1A 8AL-DFN
Datasheet8-VQFN Exposed Pad
84,059 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-AL-DFN (3x3)
RT2517AGQV
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.7V |
| Voltage Dropout (Max) | 0.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 400 µA |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VQFN Exposed Pad |
| Supplier Device Package | 8-AL-DFN (3x3) |
| Base Product Number | RT2517 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |

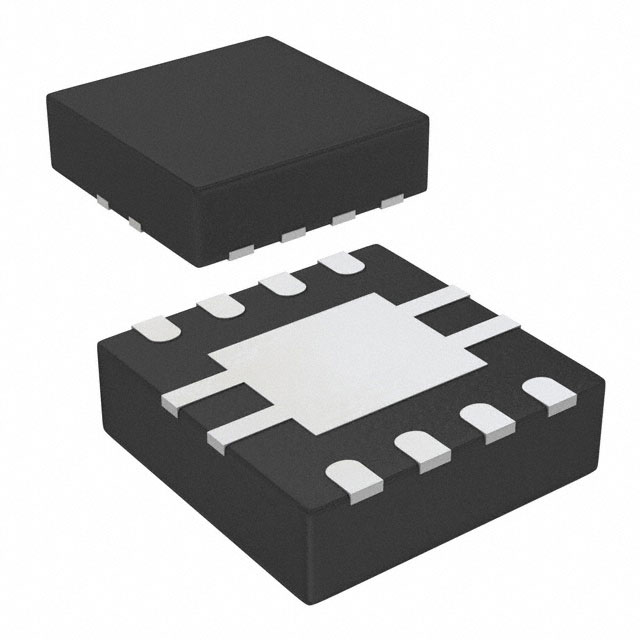

.jpg "RT2519GQV(2)") |

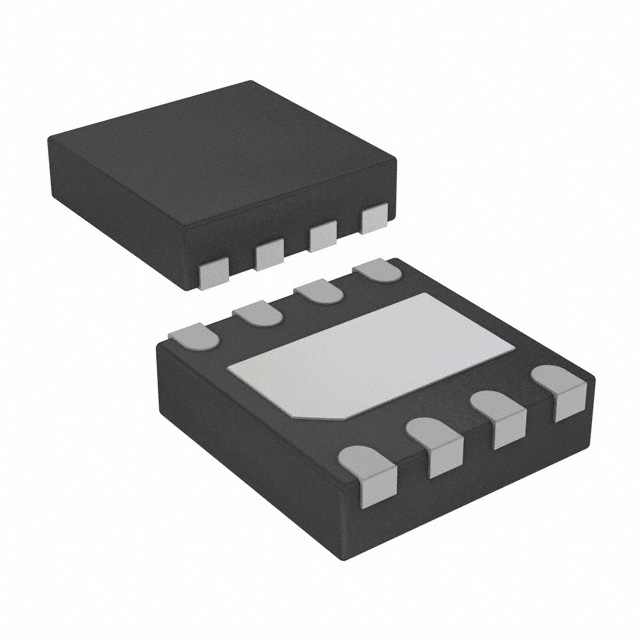

| Part Number | RT2515AGSP | RT2517BGSP | RT2518GQW | RT2519GQV(2) |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR POS ADJ 2A 8SOP | IC REG LINEAR POS ADJ 1A 8SOP | IC REG LINEAR POS ADJ 1.2A 8WDFN | IC REG LINEAR POS ADJ 1A 8VDFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
