RT444524

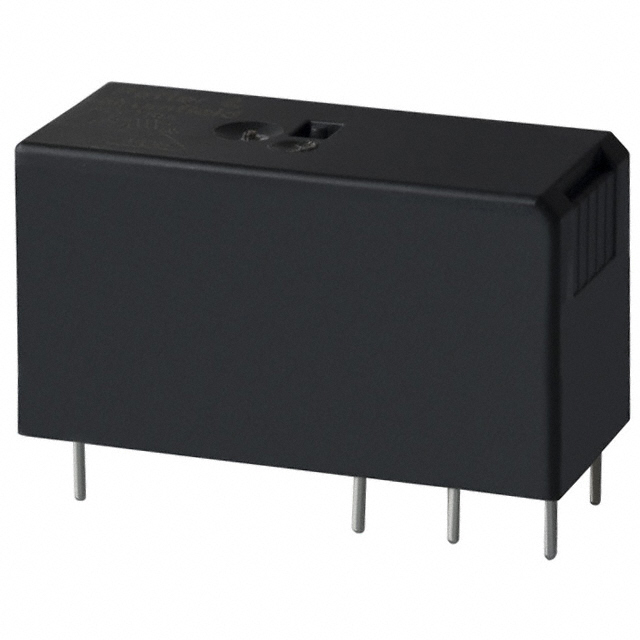

lmages are for reference only.RT444524
RELAY GEN PURPOSE DPST 8A 24V
Datasheet-
36,002 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 24VAC Coil Through Hole
RT444524
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RT2, SCHRACK |
| Packaging | Tube |
| RoHS Status | |
| Mounting Type | Through Hole |
| Coil Voltage | 24VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 3200VA |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VAC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, CSA, cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 350 Ohms |
| Base Product Number | RT4445 |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT444005 | RT444006 | RT444012 | RT444012F |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPST 8A 5V | RELAY GEN PURPOSE DPST 8A 6V | RELAY GEN PURPOSE DPST 8A 12V | RELAY GEN PURPOSE DPST 8A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Tube | Tube |
