RT6150B-33GQW
lmages are for reference only.RT6150B-33GQW
IC REG BCK BST 3.3V 800MA 10WDFN
Datasheet10-WFDFN Exposed Pad
31,026 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck-Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 800mA 10-WFDFN Exposed Pad
RT6150B-33GQW
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 800mA |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WDFN (2.5x2.5) |
| Base Product Number | RT6150 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT6150BGQW | RT6150AGQW | RT6154AGQW | RT6154BGQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

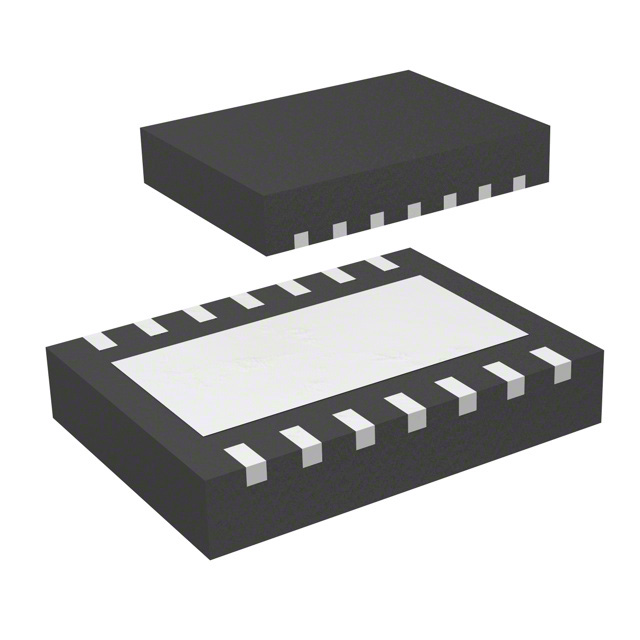

| Description | IC REG BUCK BST ADJ 800MA 10WDFN | IC REG BUCK BST ADJ 800MA 10WDFN | IC REG BUCK BOOST ADJ 4A 14WDFN | IC REG BUCK BOOST 3.3V 4A 14WDFN |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
