RT8234AZQW

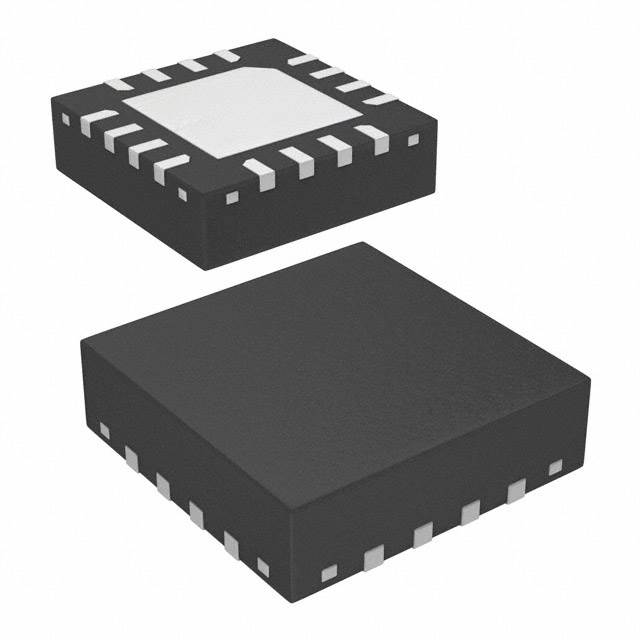

lmages are for reference only.RT8234AZQW
IC REG DL BUCK/LNR SYNC 16WQFN
Datasheet16-WFQFN Exposed Pad
47,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 16-WQFN (3x3)
RT8234AZQW
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear Switching |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Number of Outputs | 2 |
| Frequency - Switching | - |
| Voltage/Current - Output 1 | Controller |
| Voltage/Current - Output 2 | Adj to 0.75V, 3A |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Base Product Number | RT8234 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT8204AGQW | RT8204BGQW | RT8204LGQW | RT8204LZQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG DL BUCK/LNR SYNC 16WQFN | IC REG DL BUCK/LNR SYNC 16WQFN | IC REG DL BUCK/LNR SYNC 16WQFN | IC REG CTRLR BUCK PWM WQFN-16 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
