RT8509GQW

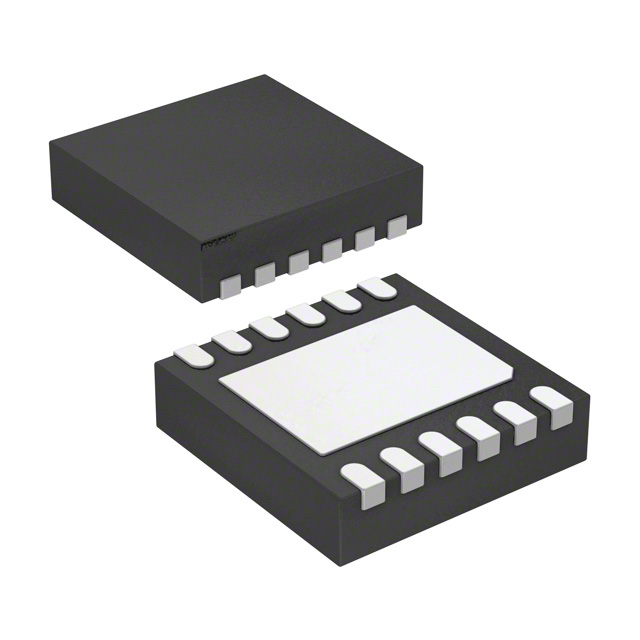

lmages are for reference only.RT8509GQW
IC REG CONV TFT LCD 1OUT 10WDFN
Datasheet10-WFDFN Exposed Pad
44,591 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
- Converter, TFT LCD Voltage Regulator IC 1 Output 10-WDFN (3x3)
RT8509GQW
| Category | Integrated Circuits (ICs) - Power Management PMIC - Special Purpose Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Applications | Converter, TFT LCD |
| Voltage - Input | 2.8V ~ 14V |
| Number of Outputs | 1 |
| Voltage - Output | Adj to 24V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WDFN (3x3) |
| Base Product Number | RT8509 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT8509AGQW | RT8121GQW | RT8167AGQW | RT8167BGQW |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CONV TFT LCD 1OUT 12WDFN | IC REG CTRLR VID 1OUT 20WQFN | IC REG CTRLR IMVP-7 2OUT 48WQFN | IC REG CTRLR IMVP-7 2OUT 40WQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
