RT8566GCP
lmages are for reference only.RT8566GCP
IC LED DRVR RGLTR PWM 28TSSOP
Datasheet28-TSSOP (0.173", 4.40mm Width) Exposed Pad
63,771 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 8 Output DC DC Regulator Step-Up (Boost) PWM Dimming 120mA 28-TSSOP-EP
RT8566GCP
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 8 |
| Voltage - Supply (Min) | 9V |
| Voltage - Supply (Max) | 28V |
| Voltage - Output | 45V |
| Current - Output / Channel | 120mA |
| Frequency | 100kHz ~ 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
| Base Product Number | RT8566 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RT8402GJ6 | RT8413GS | RT8415GSP | RT8450BGCP |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

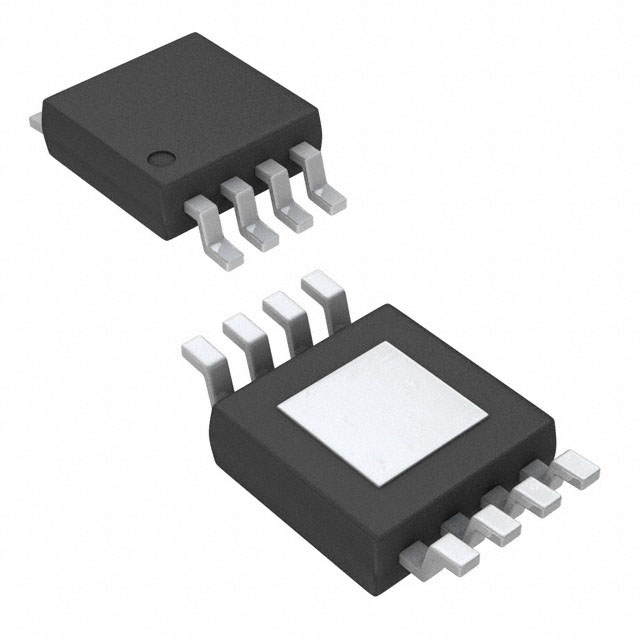

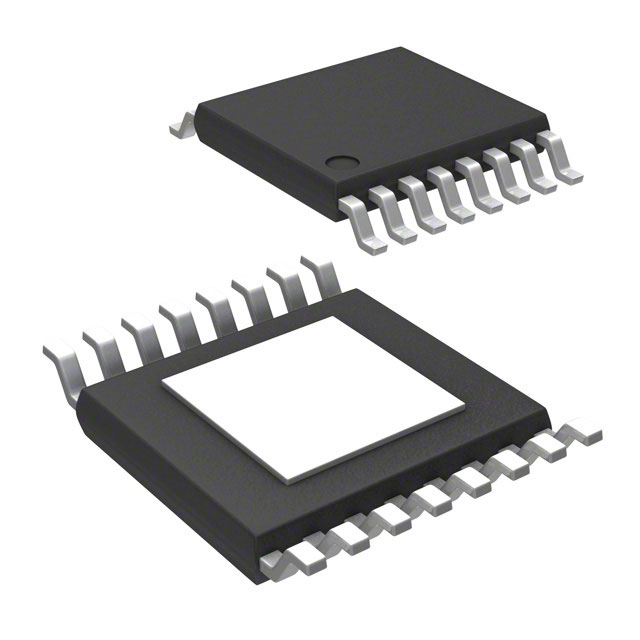

| Description | IC LED DRVR OFFL TRIAC TSOT23-6 | IC LED DRVR OFFL TRIAC 3MA 8SOP | IC LED DRIVER OFFL 8SOP | IC LED DRV RGLTR PWM 16TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
